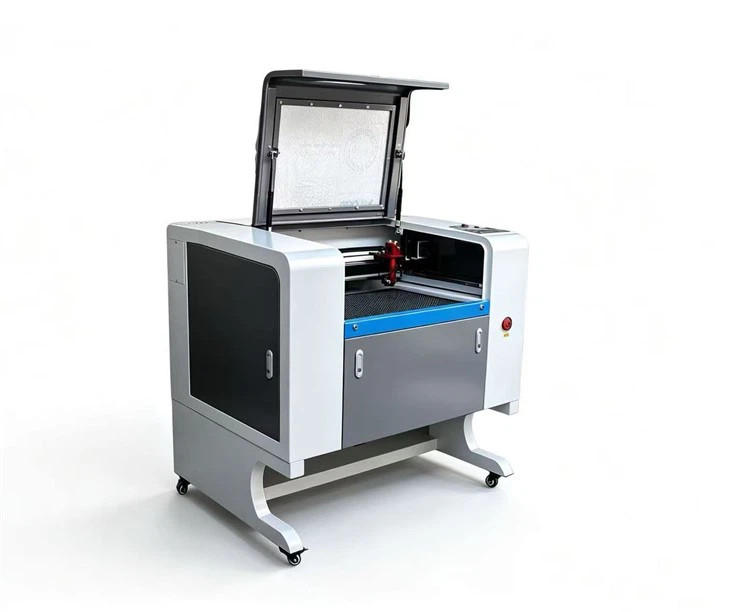

Co2 Laser Engraving Cutting Machine

Features:
1) Advanced RD Digital Control technology .
2) Original Imported Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.
3) Imported Reflected Lens and focus lens in the Optical System Can greatly Reduce the heat loss
4) High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.
5) The Laser tube adopts Compulsive Water Cooling System, Water Pump Can Control the temperature Automatically,
6) High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,etc.
7) Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.
8) Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials



Inquiry 

CO2 LASER ENGRAVING CUTTING MACHINE

Features:

1) Advanced RD Digital Control technology .

2) Original Imported Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.

3) Imported Reflected Lens and focus lens in the Optical System Can greatly Reduce the heat loss

4) High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.

5) The Laser tube adopts Compulsive Water Cooling System, Water Pump Can Control the temperature Automatically,

6) High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,etc.

7) Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.

8) Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials

CO2 LASER ENGRAVING CUTTING MACHINE PARAMAETERS

Model	6040L	1390L	1610L	1325L	Option
Working Area	600*400mm	1300*900mm	1600*1000mm	1300*2500mm	According to Demands
Laser Power	60w/80w/100w/130w/150w
Laser Type	CO2 Sealed Laser Tube , 10.6μm
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Cutting Speed	0-40000mm/min
Laser Output Control	0-100% set by software
Min. Engraving Size	Chinese: 2.0mm2.0mm, English Letter: 1.0mm1.0mm
Highest Scanning Precision	4000DPI
Locating Accuracy	≤+0.01mm
Controlling Software	RD Control System
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible Software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation	Yes
Drive System	High-precision 3-phase Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power Supply	AC110V/220V+10%,50HZ/60HZ
Working Environment	Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Rotary attachment for CO2 LASER ENGRAVING CUTTING MACHINE

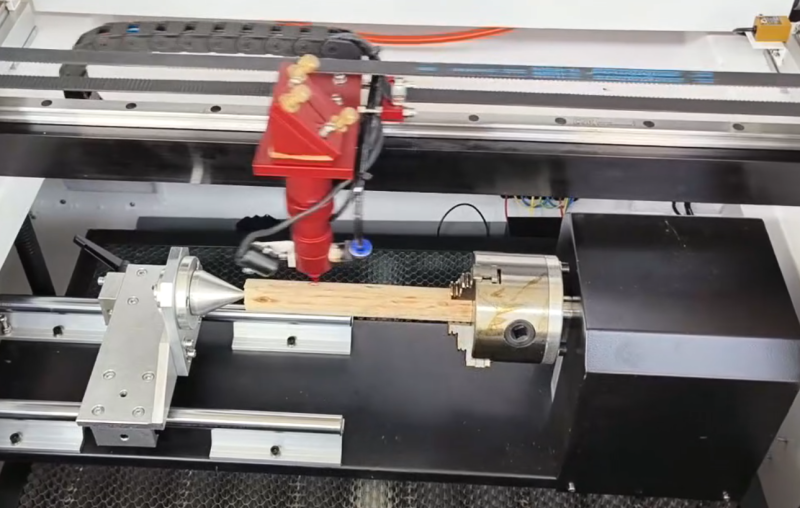

ROTARY ATTACHMENT OF CO2 LASER ENGRAVING MACHINE

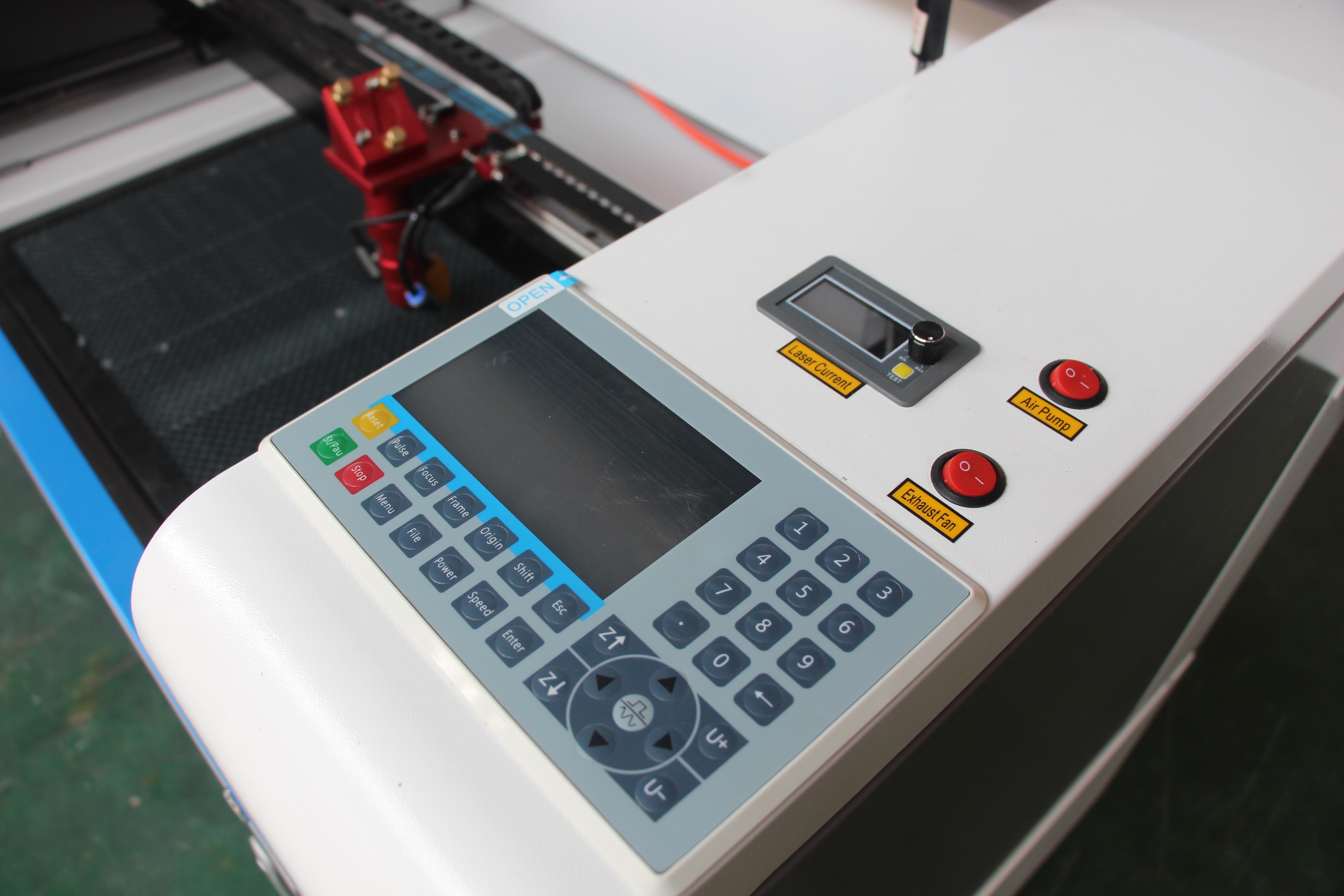

RD CONTROL OF Co2 Laser Engraving Cutting Machine

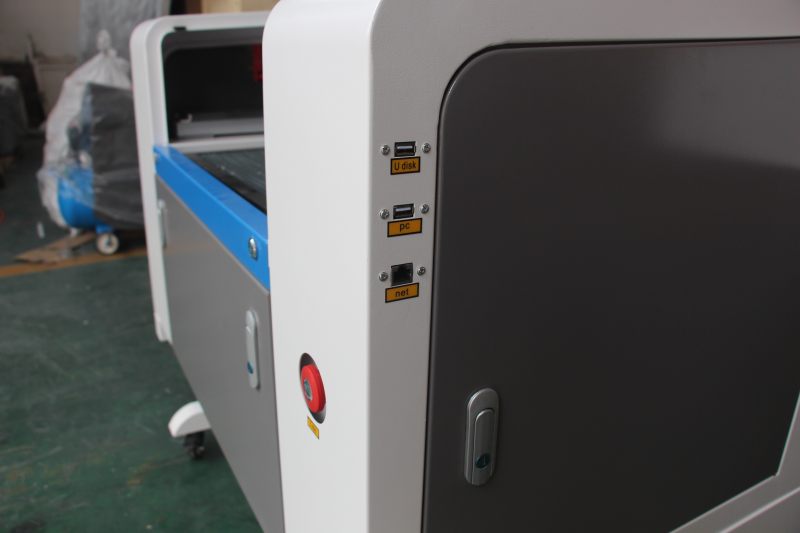

USB-ENTHERNET-WIFI FILE TRANSFER OF Co2 Laser Engraving Cutting Machine

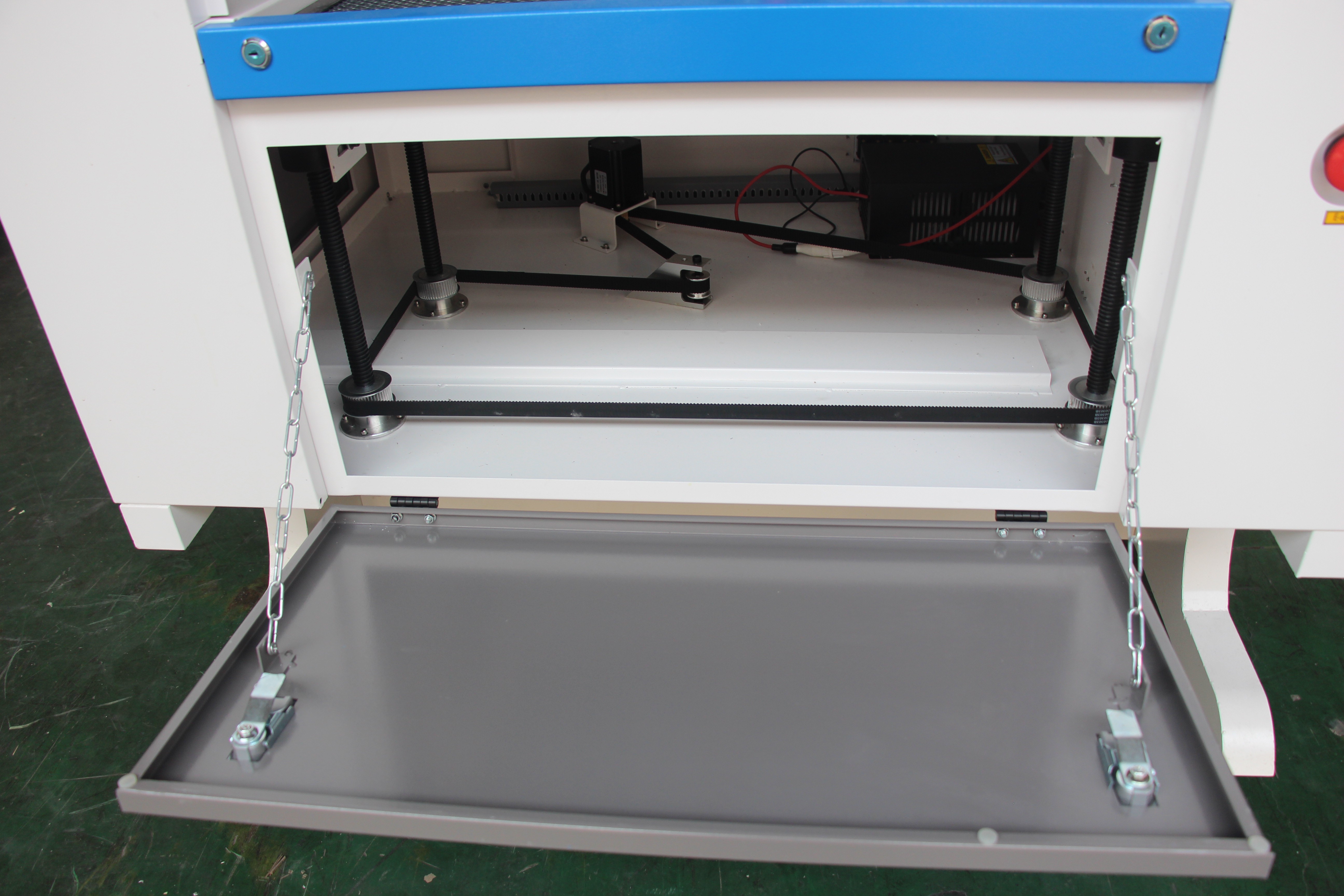

UP DOWN TABLE OF Co2 Laser Engraving Cutting Machine

RD CONTROL OF Co2 Laser Engraving Cutting Machine

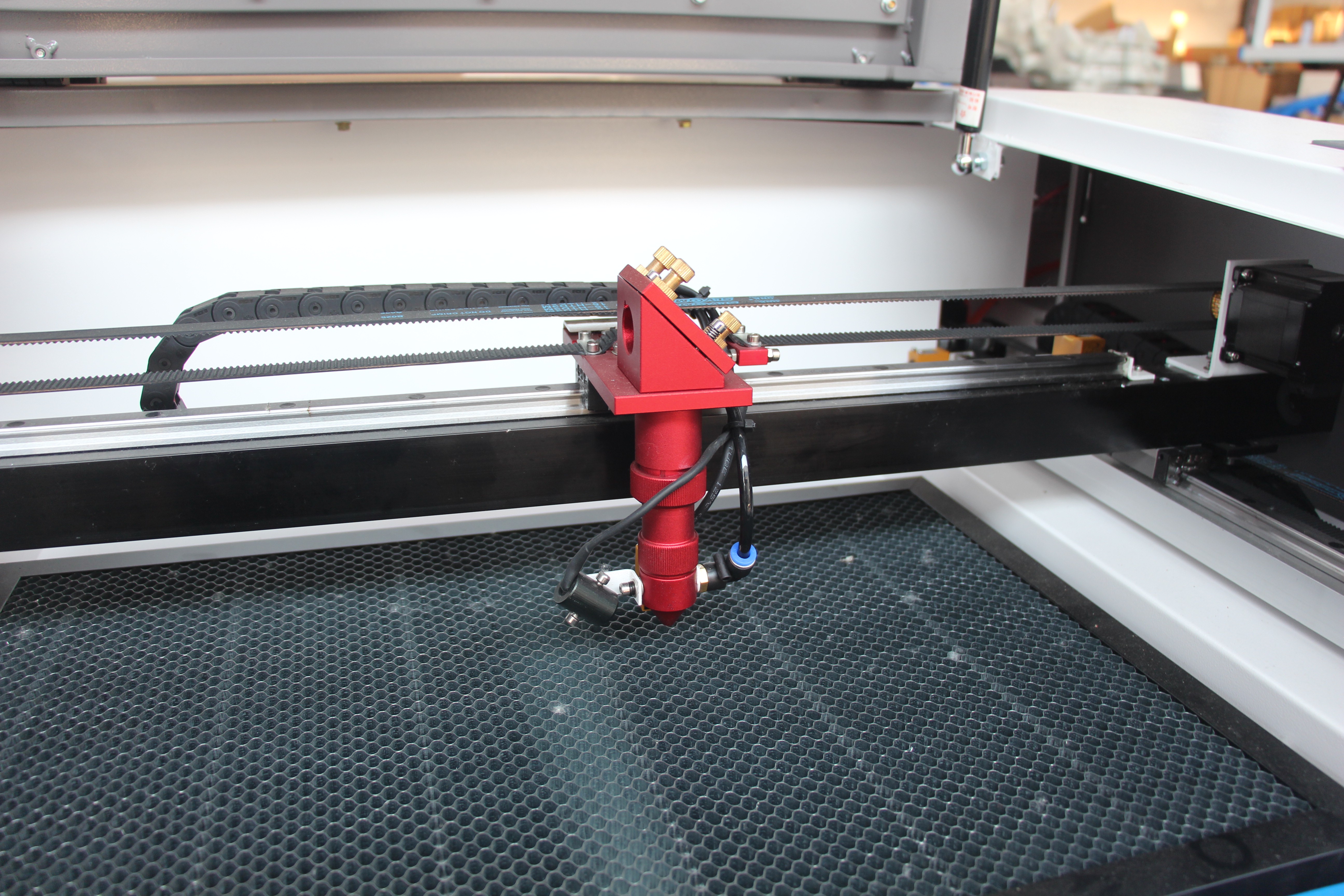

LASER HEAD OF Co2 Laser Engraving Cutting Machine

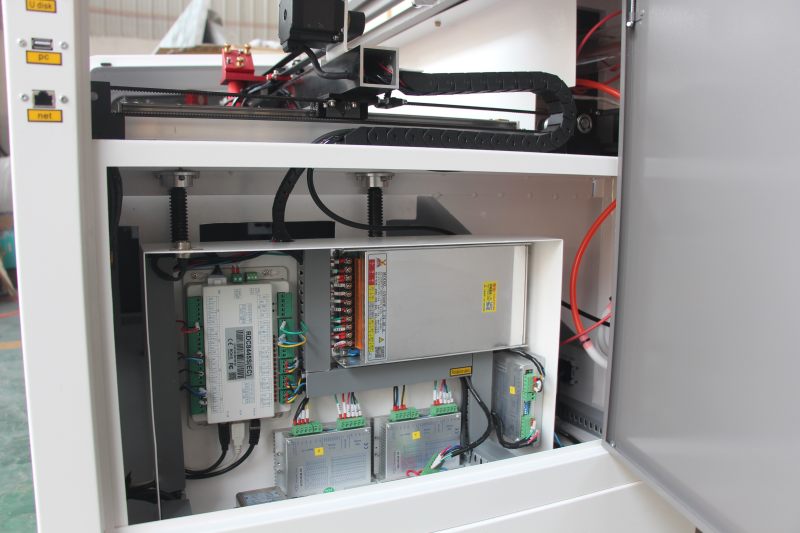

ELECTRIC BOX OF Co2 Laser Engraving Cutting Machine

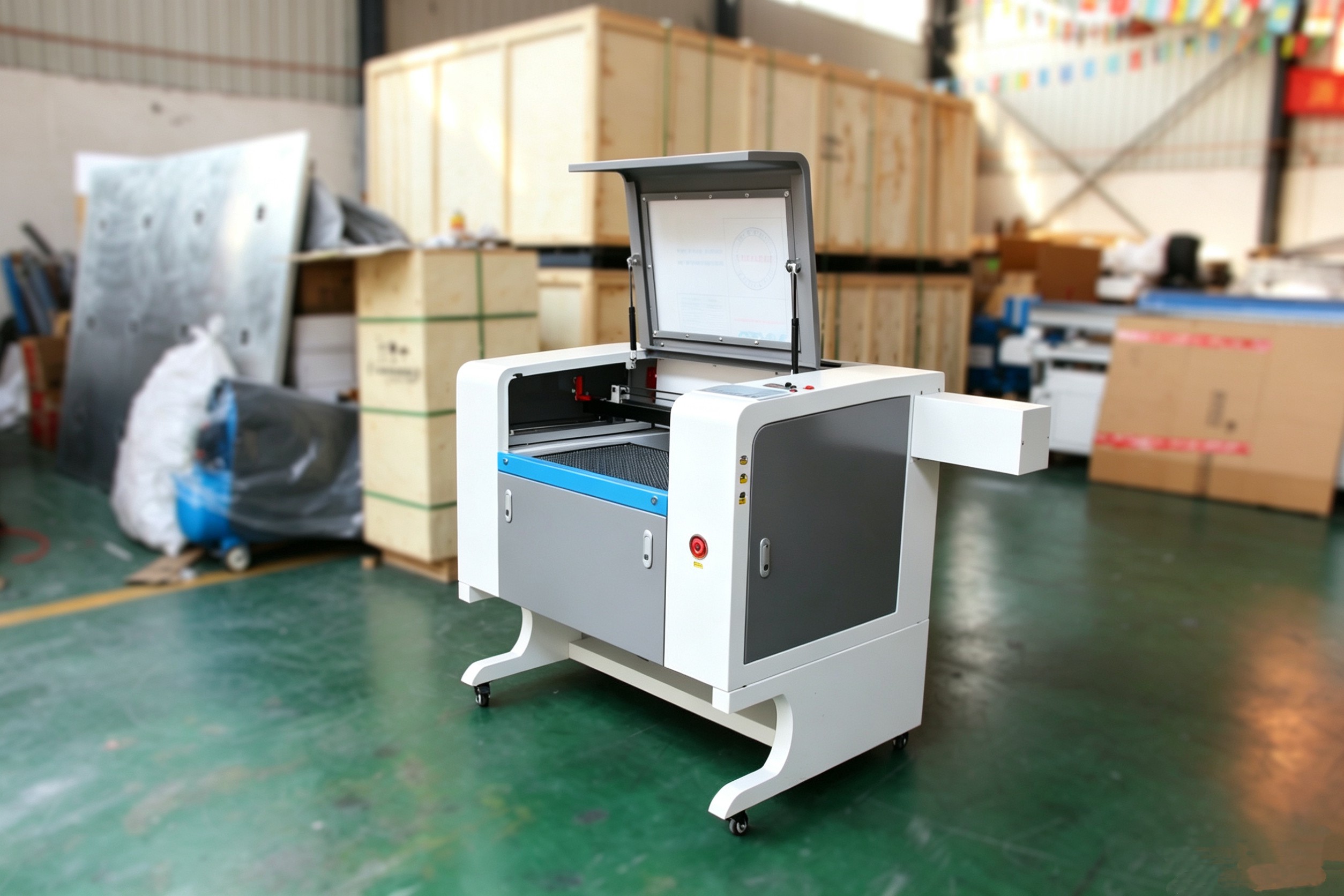

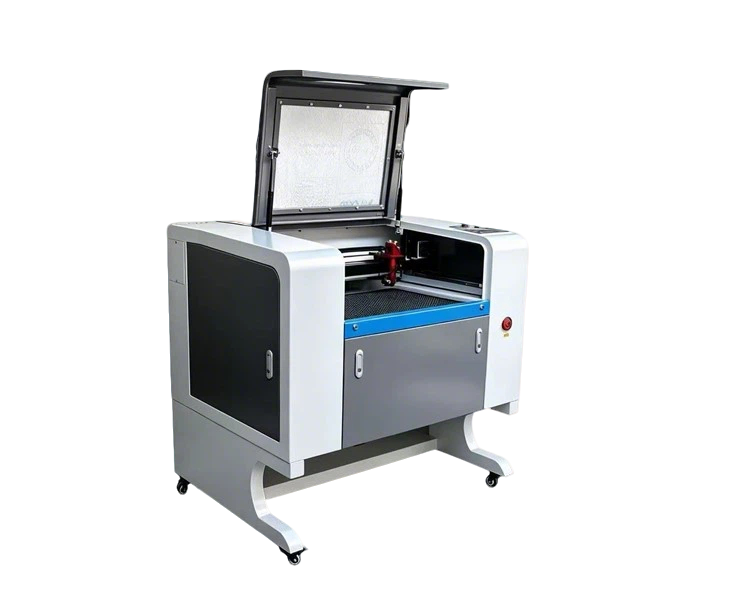

Co2 Laser Engraving Cutting Machine Photo

CO2 LASER ENGRAVING CUTTING MACHINE SAMPLES

CO2 LASER ENGRAVING CUTTING MACHINE CERTIFICATE
