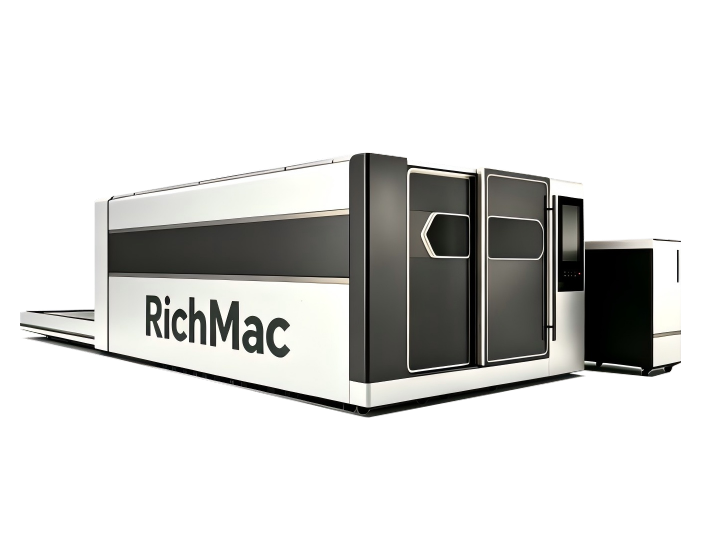

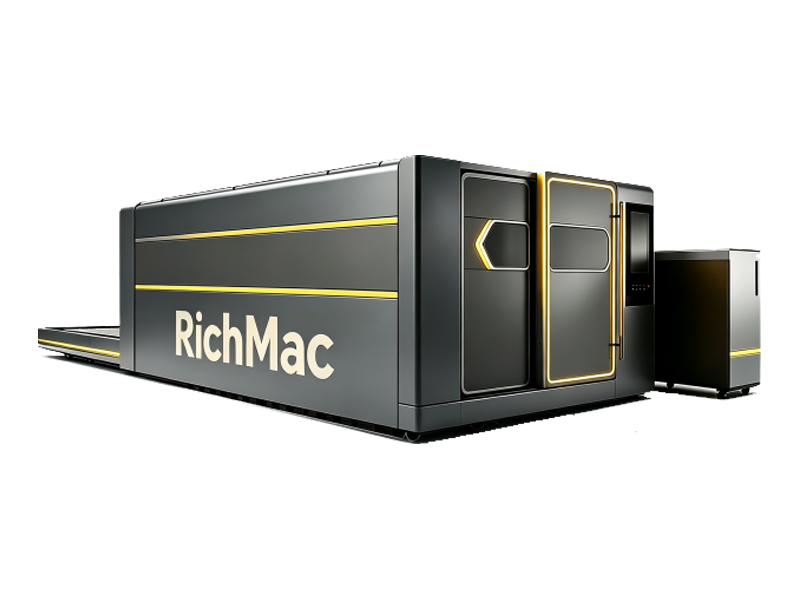

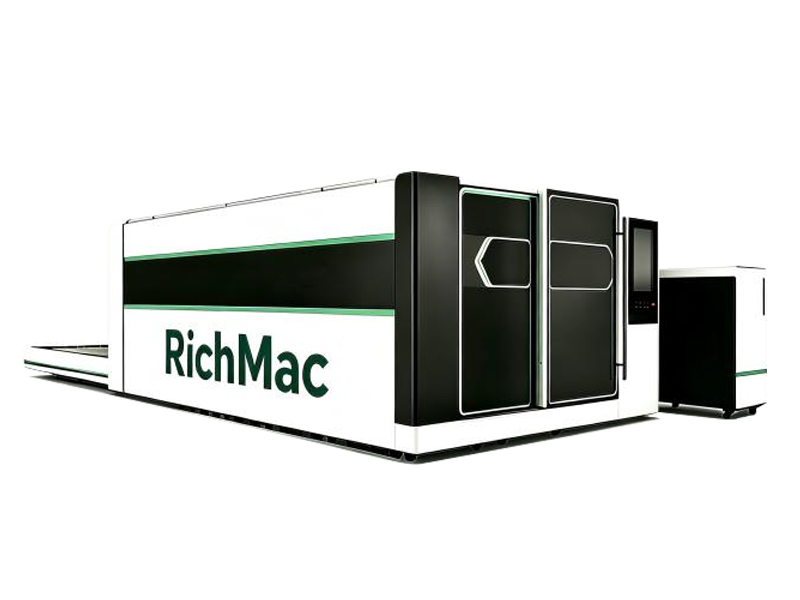

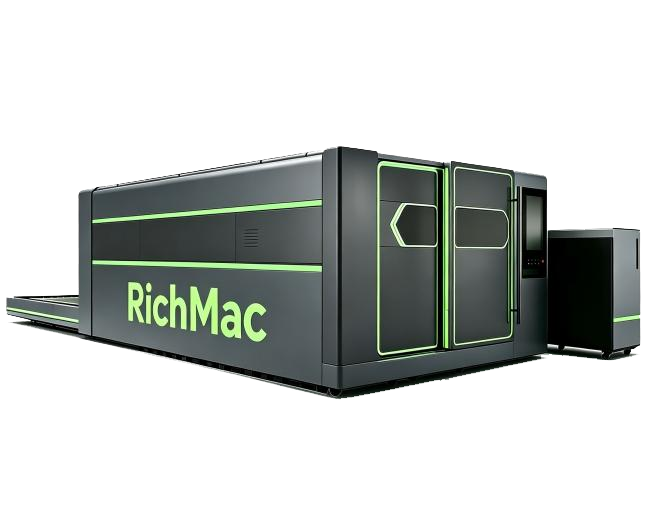

Full Enclosed Laser Cutting Machine

Name: Full Enclosed Laser Cutting Machine
SKU: 0

Designed for high-precision, high-efficiency sheet metal processing, our Enclosed Laser Cutting Machine combines industrial-grade performance with maximum operational safety. Featuring a fully protective enclosure, dual automated exchange tables, and cutting-edge fiber laser technology, this machine is engineered to meet the demanding requirements of modern high-volume manufacturing environments.



Inquiry 

Overview of Full Enclosed Laser Cutting Machine

Technical Specifications of Metal Sheet Fiber Laser Cutter

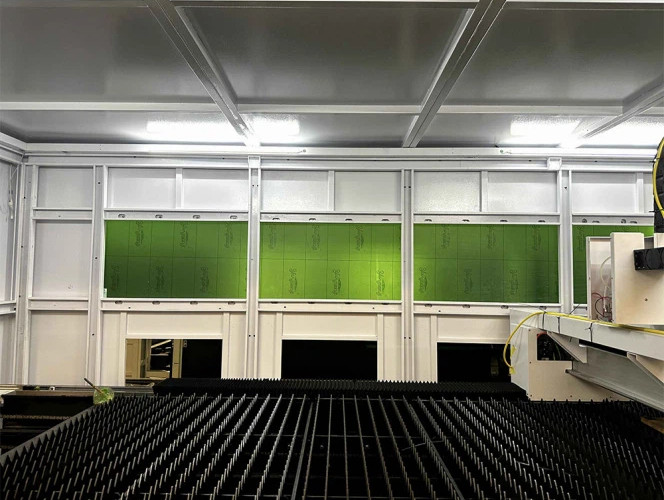

✅Fully Enclosed Safety Structure
✅Operator Protection: Completely isolates the laser cutting zone to prevent accidental laser radiation exposure (Class 1 laser safety standard compliance).
✅Smoke & Dust Extraction: Equipped with an integrated top-and-bottom exhaust system that effectively collects fumes, dust, and toxic gases, maintaining a clean workspace.

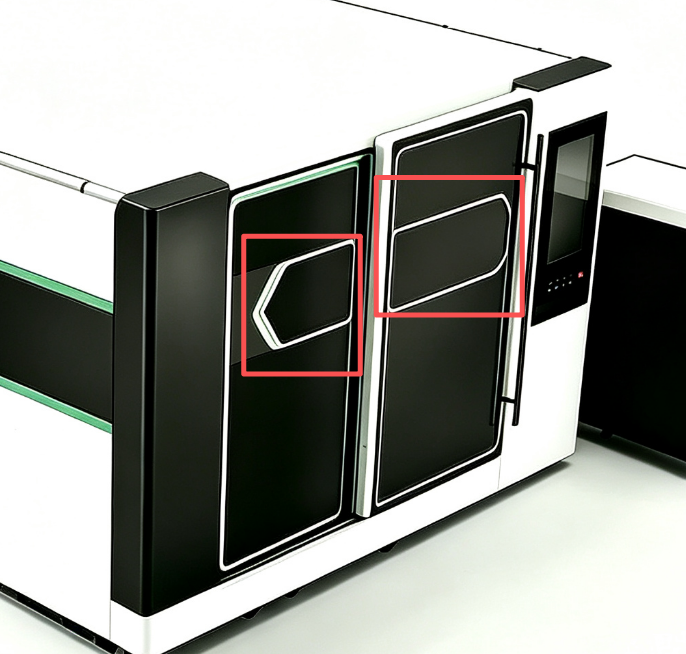

✅Observation Windows: High-definition OD6+ protective glass windows allow safe monitoring of the cutting process in real time.

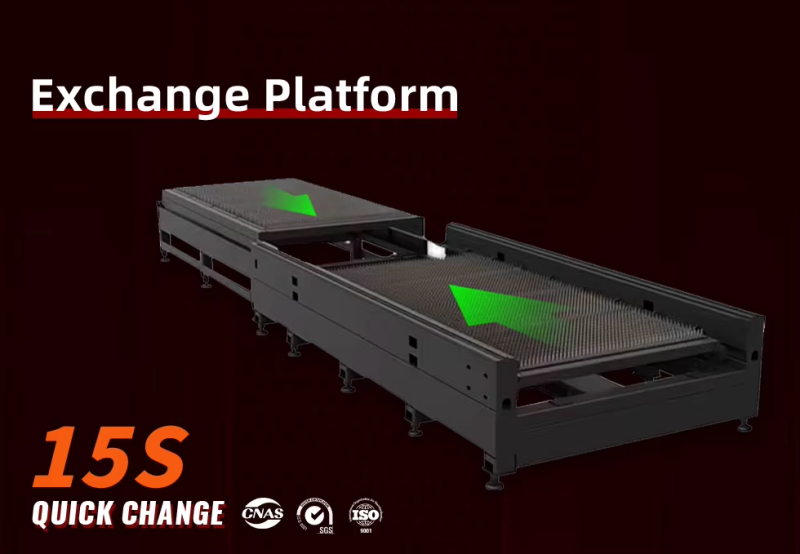

✅Dual Automatic Exchange Platform
Zero Downtime: A parallel exchange table enables automatic loading and unloading while the laser is actively cutting.Fast Swap Speed: Swapping tables takes as little as 10 to 15 seconds, significantly boosting daily throughput and reducing idle machine time.

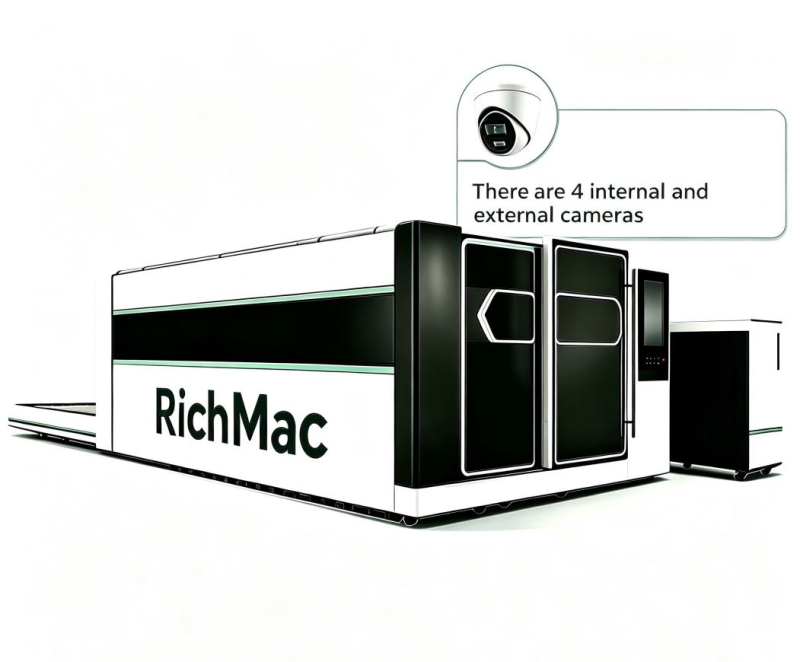

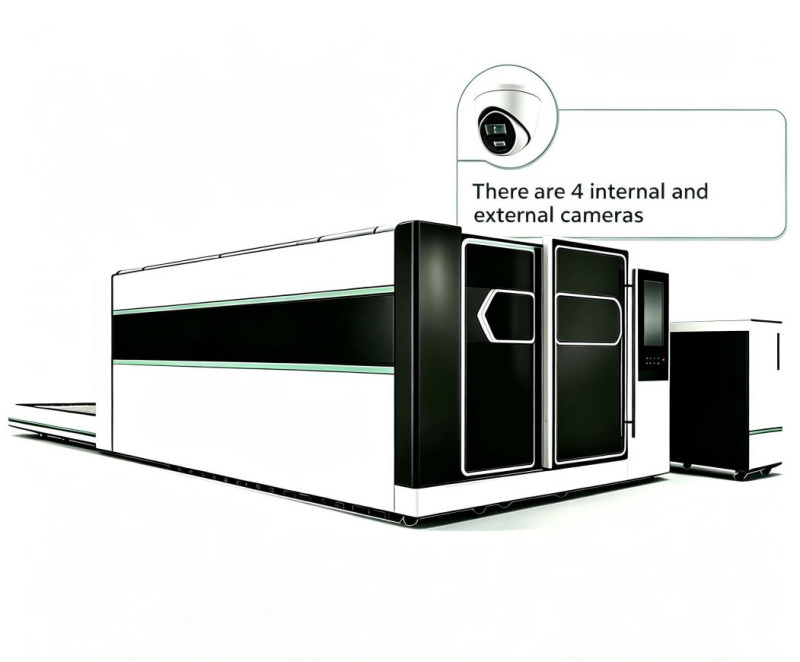

✅Real-Time Monitoring: Built-in camera and self-diagnostic functions for rapid troubleshooting and predictive maintenance.

Technical Specifications of Full Enclosed Laser Cutting Machine

Specification	Parameter
Laser Power	1kW – 120kW (Optional)
Working Area	3000 x 1500 mm / 4000 x 2000 mm / 6000 x 2500 mm (Customized)
X/Y Axis Positioning Accuracy	±0.03 mm/m
X/Y Axis Repositioning Accuracy	±0.02 mm
Max. Acceleration	1.2G – 1.5G
Max. Simultaneous Linkage Speed	Up to 120 m/min
Exchange Table Time	10 – 15 seconds
Compatible Materials	Carbon Steel, Stainless Steel, Aluminum, Brass, Copper, Galvanized Sheet

Key Advantages of Metal Sheet Fiber Laser Cutter

Superior Beam Quality: The high-density laser beam ensures a smaller focal spot, resulting in more refined cutting lines and higher work efficiency.

Extreme Speed: Enjoy cutting speeds up to 2-3 times faster than CO2 lasers of equivalent power, significantly shortening production cycles.

Low Operating Cost: Photoelectric conversion efficiency is over 30%, drastically reducing electricity consumption. Minimal maintenance is required as there are no mirrors to align or replace.

Stable Performance: Equipped with world-leading laser sources, the machine boasts a service life of up to 100,000 hours with consistent stability.

User-Friendly Interface: Integrated with professional CNC software, supporting CAD/CorelDraw input, making complex geometries easy to execute.

Industry Applications of Metal Sheet Fiber Laser Cutter

This machine is the "workhorse" of modern industry, widely used in:

Aerospace & Automotive: High-precision structural components.

Sheet Metal Fabrication: Cabinets, enclosures, and elevator panels.

Kitchenware & Furniture: Stainless steel processing with aesthetic finishing.

Advertising & Signage: Intricate lettering and logo cutting in various metals.
