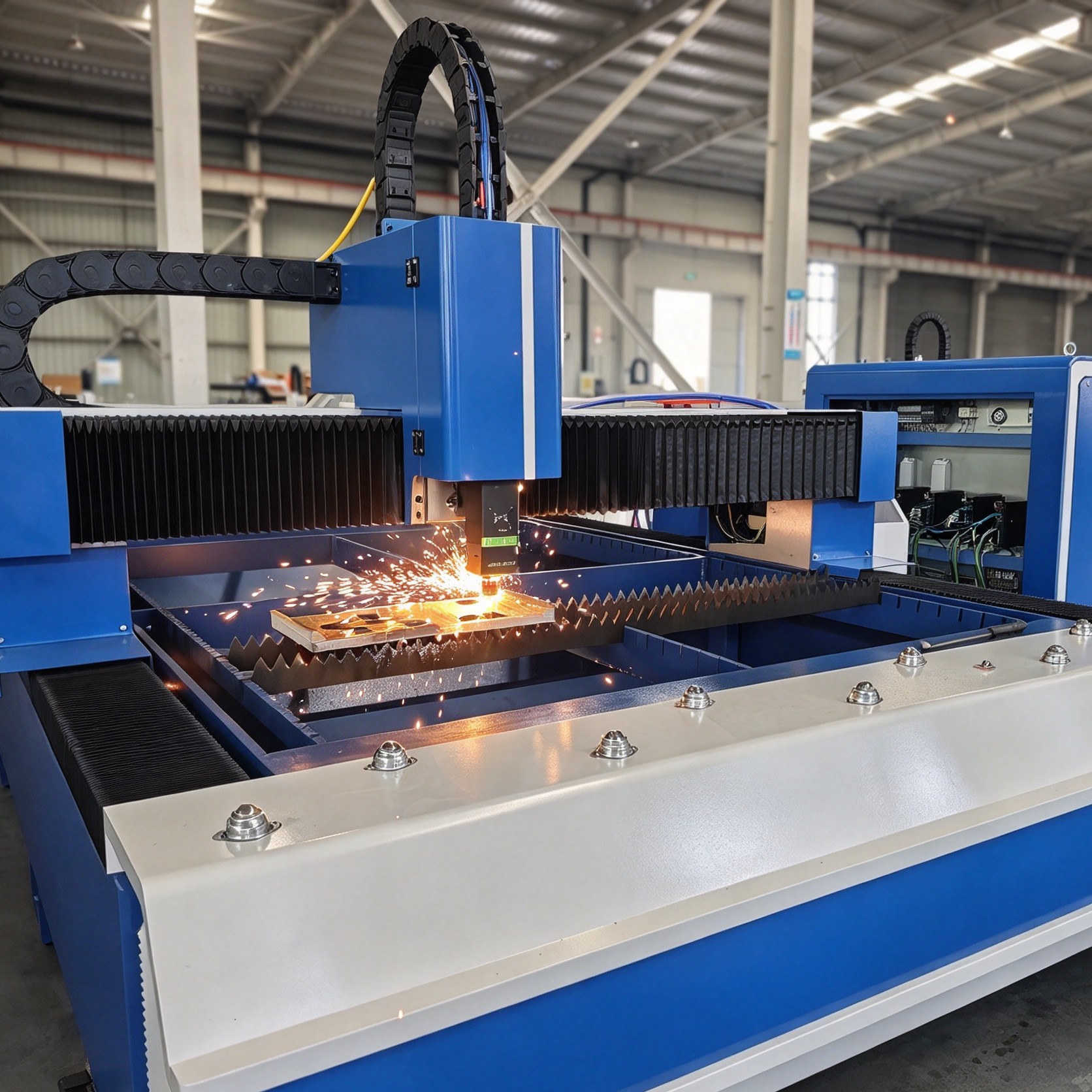

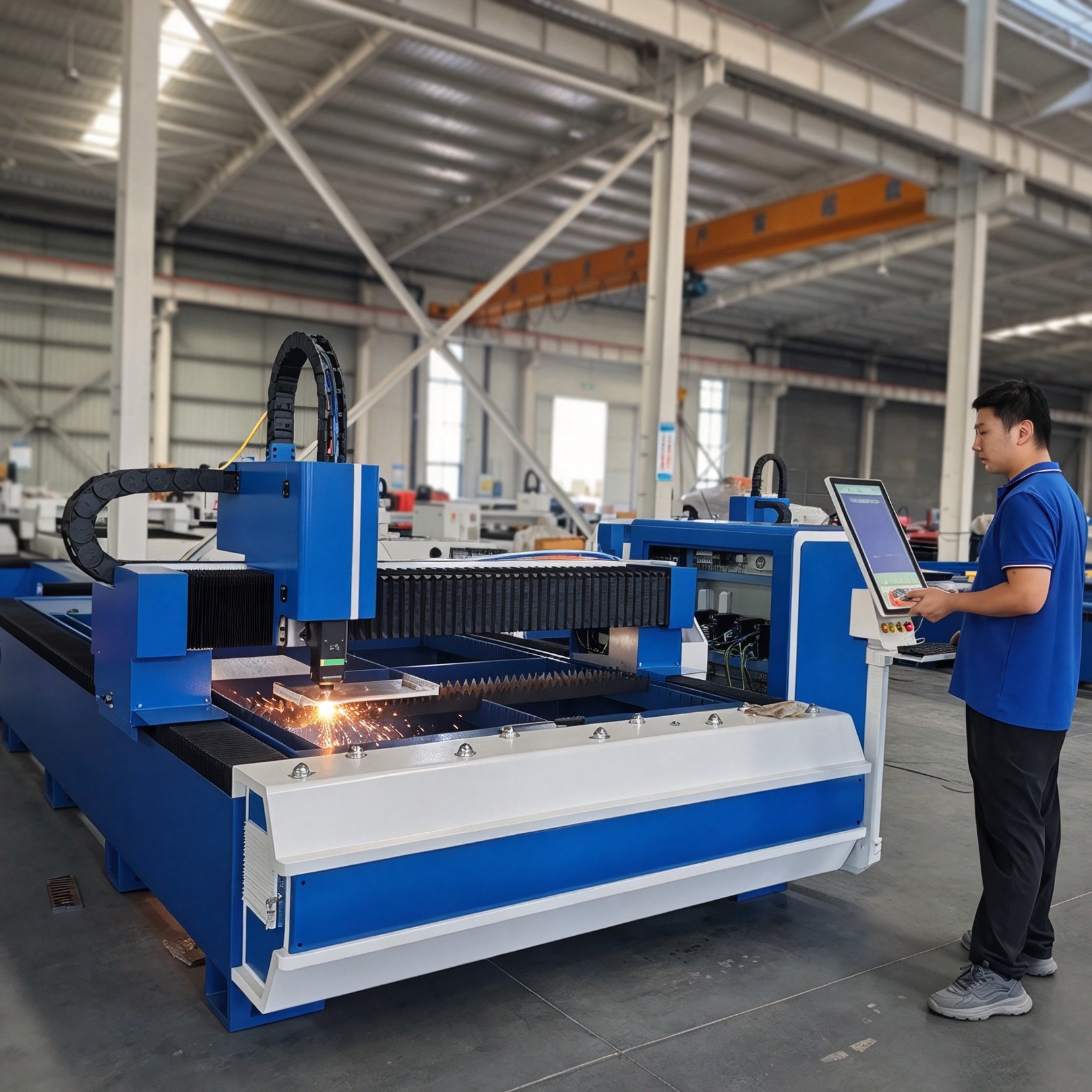

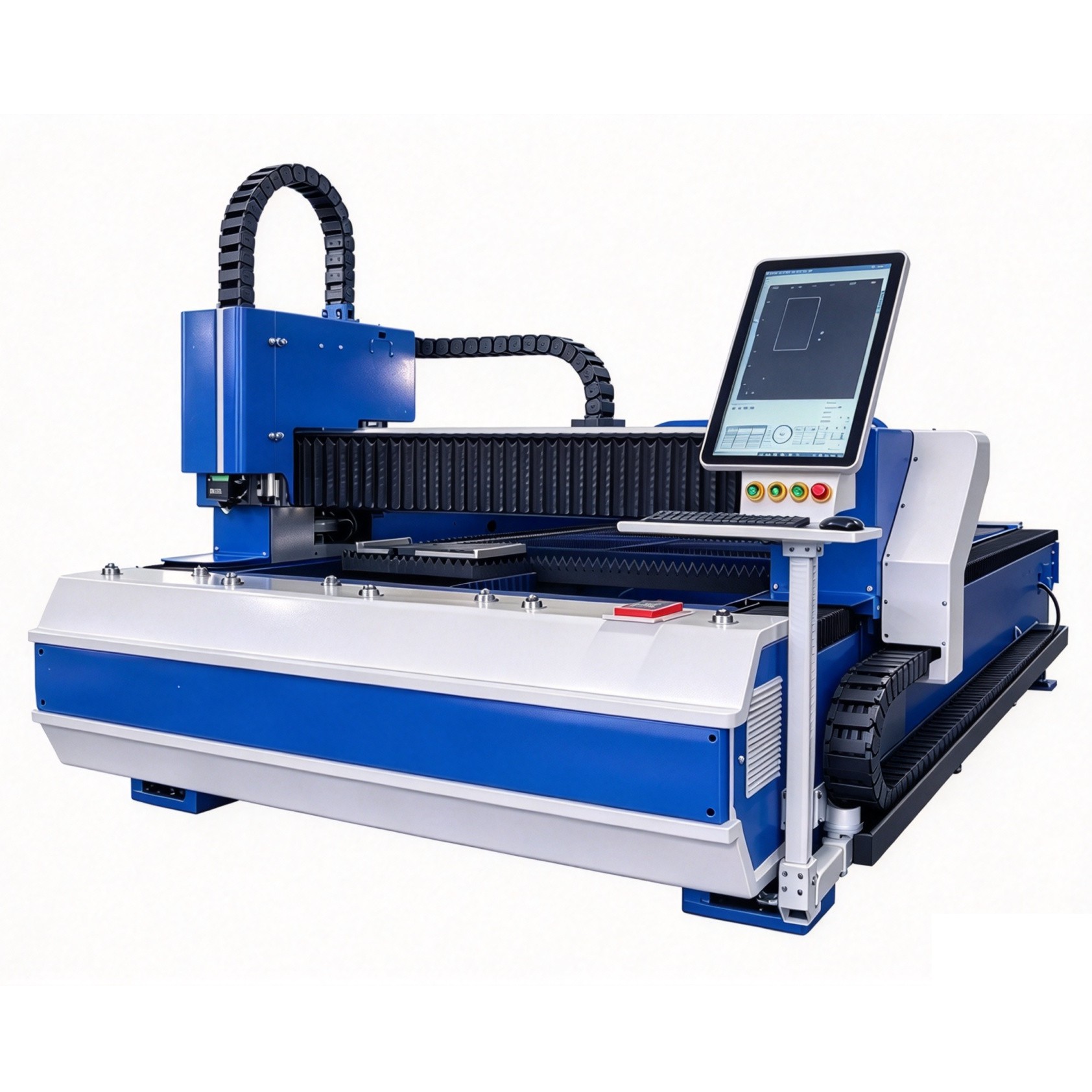

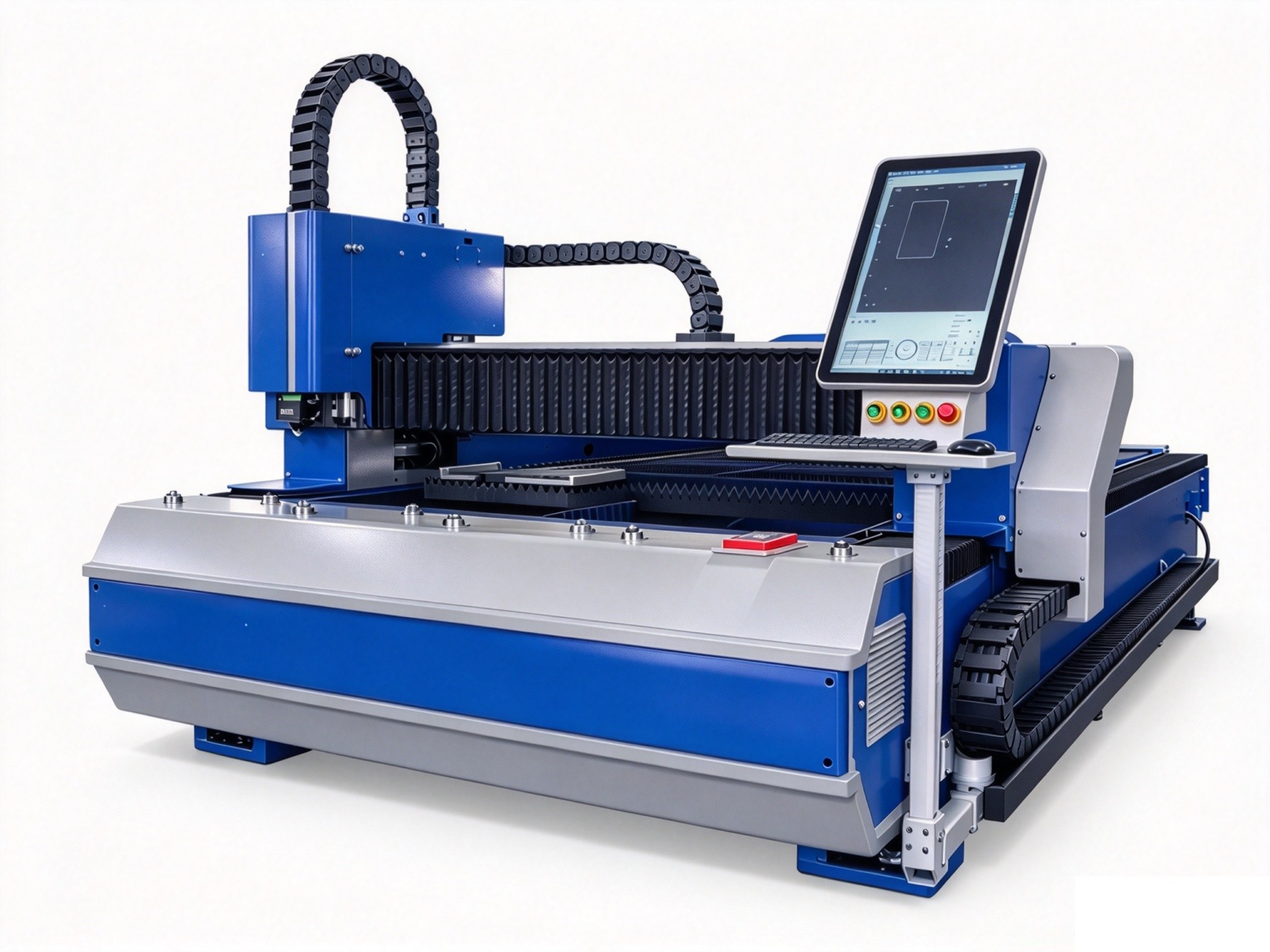

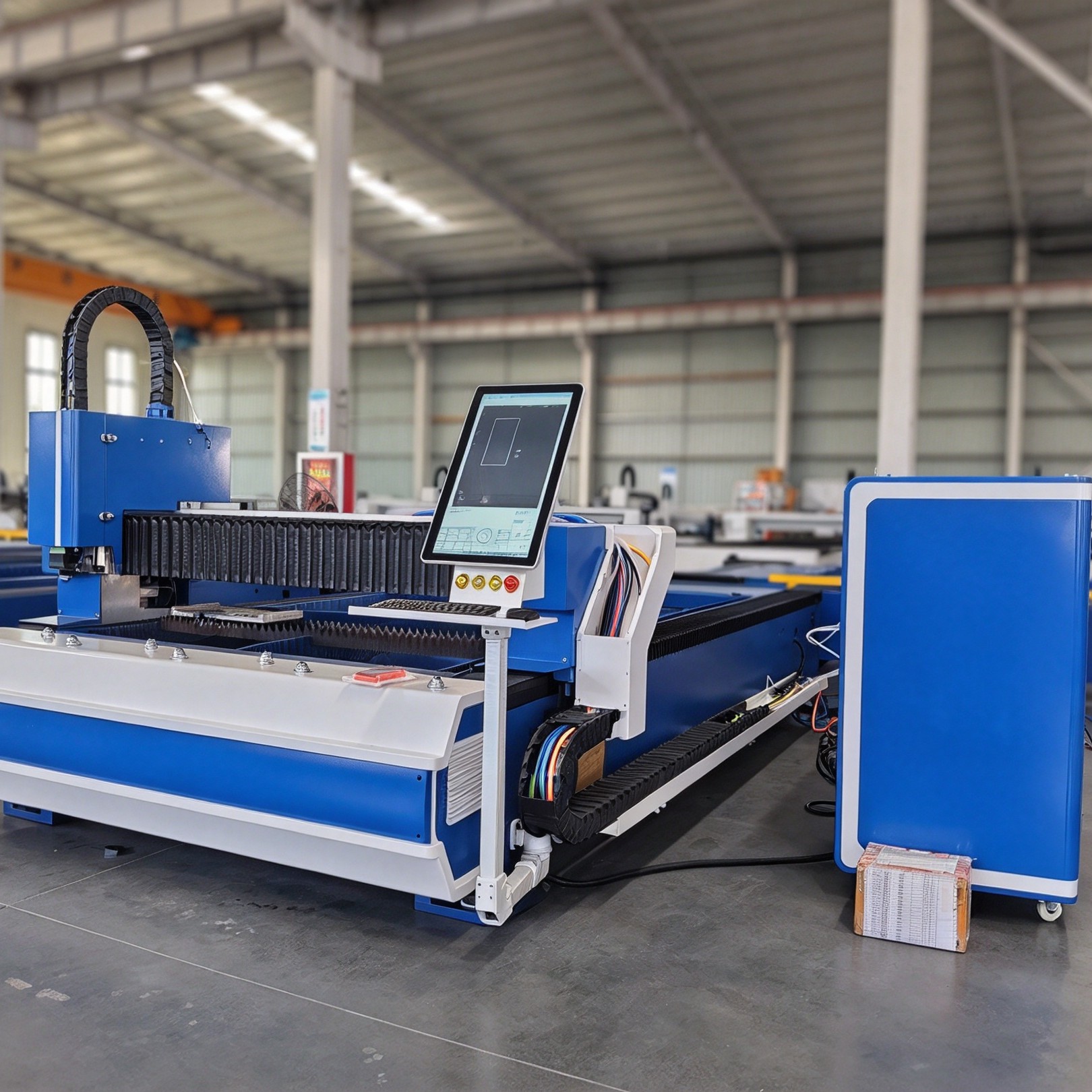

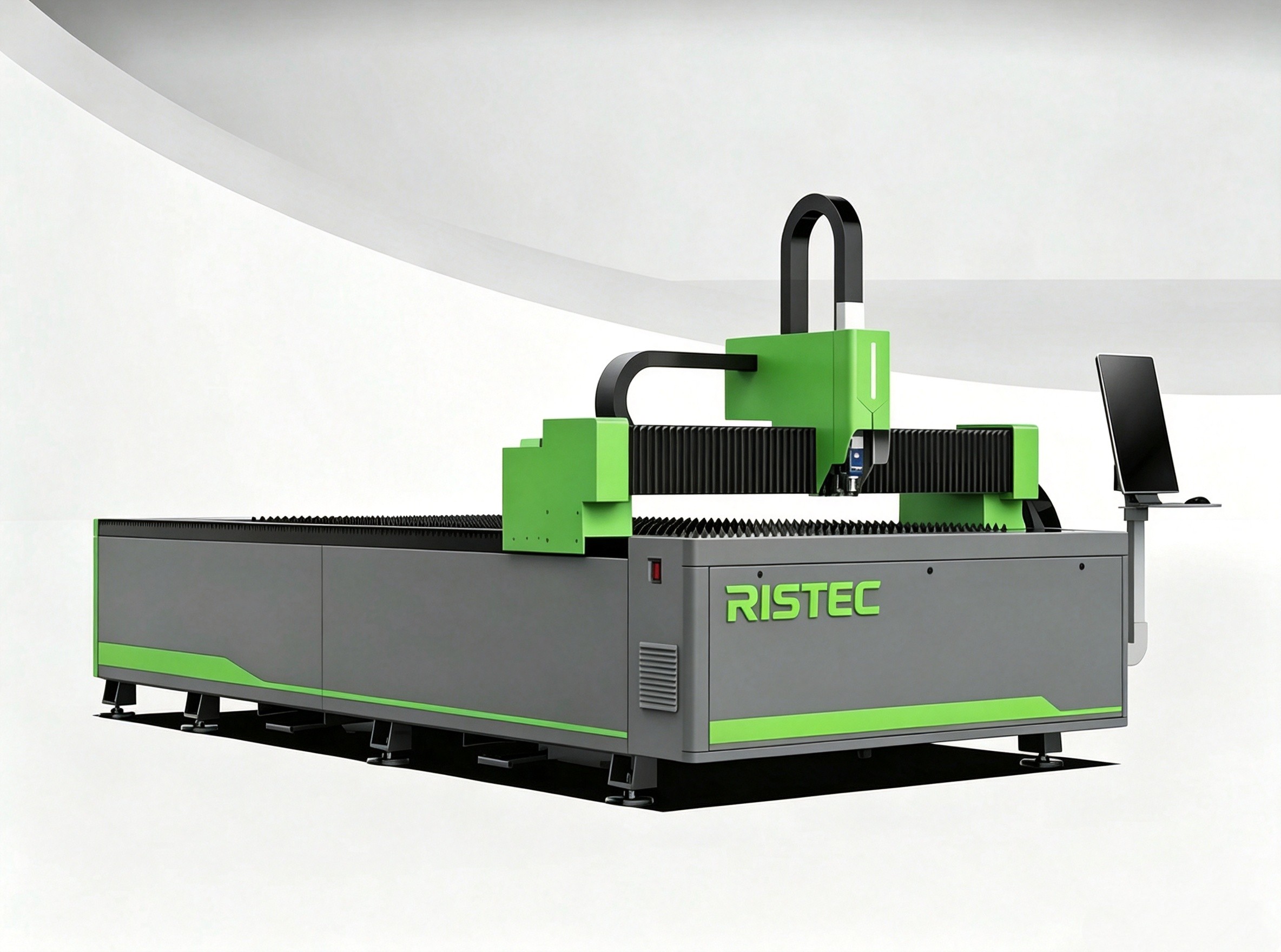

Fiber laser cutter B3216-3KW

Name: Fiber laser cutter B3216-3KW
SKU: 0

Fiber laser cutting machine adopts fiber laser source, featuring high photoelectric conversion efficiency, fast cutting speed, high precision and low thermal deformation. It can process various metals including carbon steel, stainless steel, aluminum plate, copper plate and galvanized sheet. Widely used in sheet metal, engineering machinery, kitchenware, advertising signage and other industries.



Inquiry 

What is the fiber laser cutting machine?

Working principle

The fiber laser source generates laser by pumping ytterbium-doped fiber. The laser is delivered through optical fiber to the cutting head, then focused by lens into a tiny light spot with high energy density. When the spot hits the metal workpiece surface, the material melts or vaporizes instantly. Meanwhile, coaxial auxiliary gas (oxygen /nitrogen/compressed air) blows away molten slag. The CNC system controls the cutting head moving along pre-set graphic paths to realize non-contact metal cutting.

Details

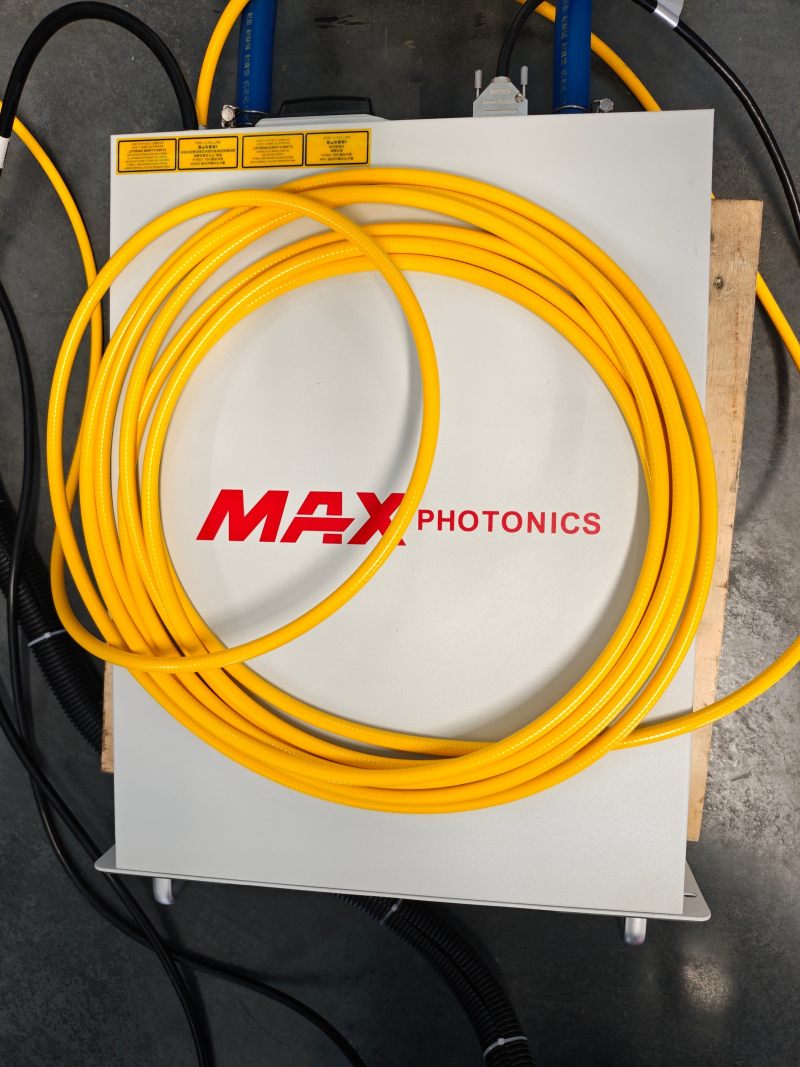

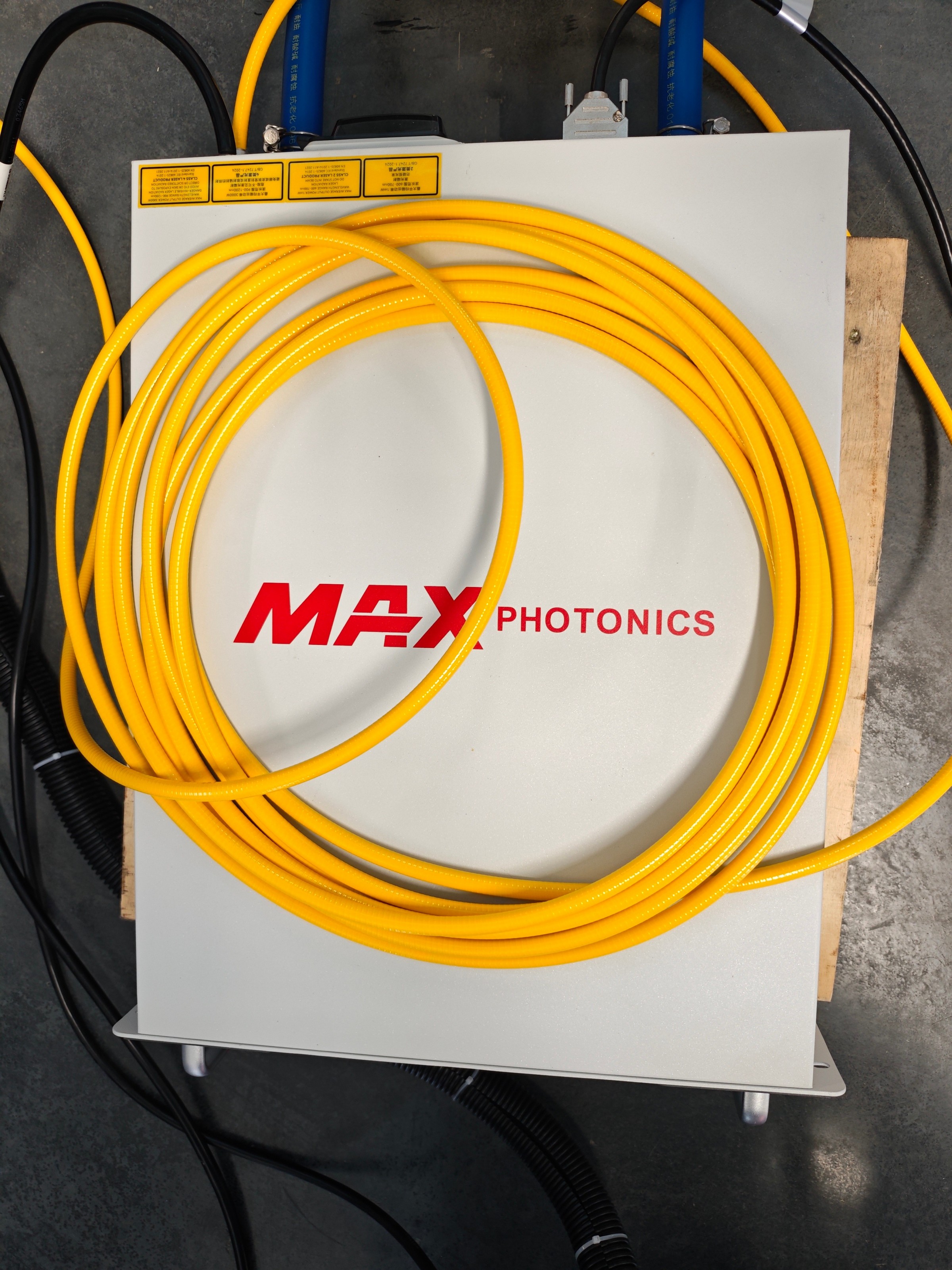

Laser source
Stable output and adjustable power. Equipped with multi electrical protection and strong anti-interference to keep laser source stable.

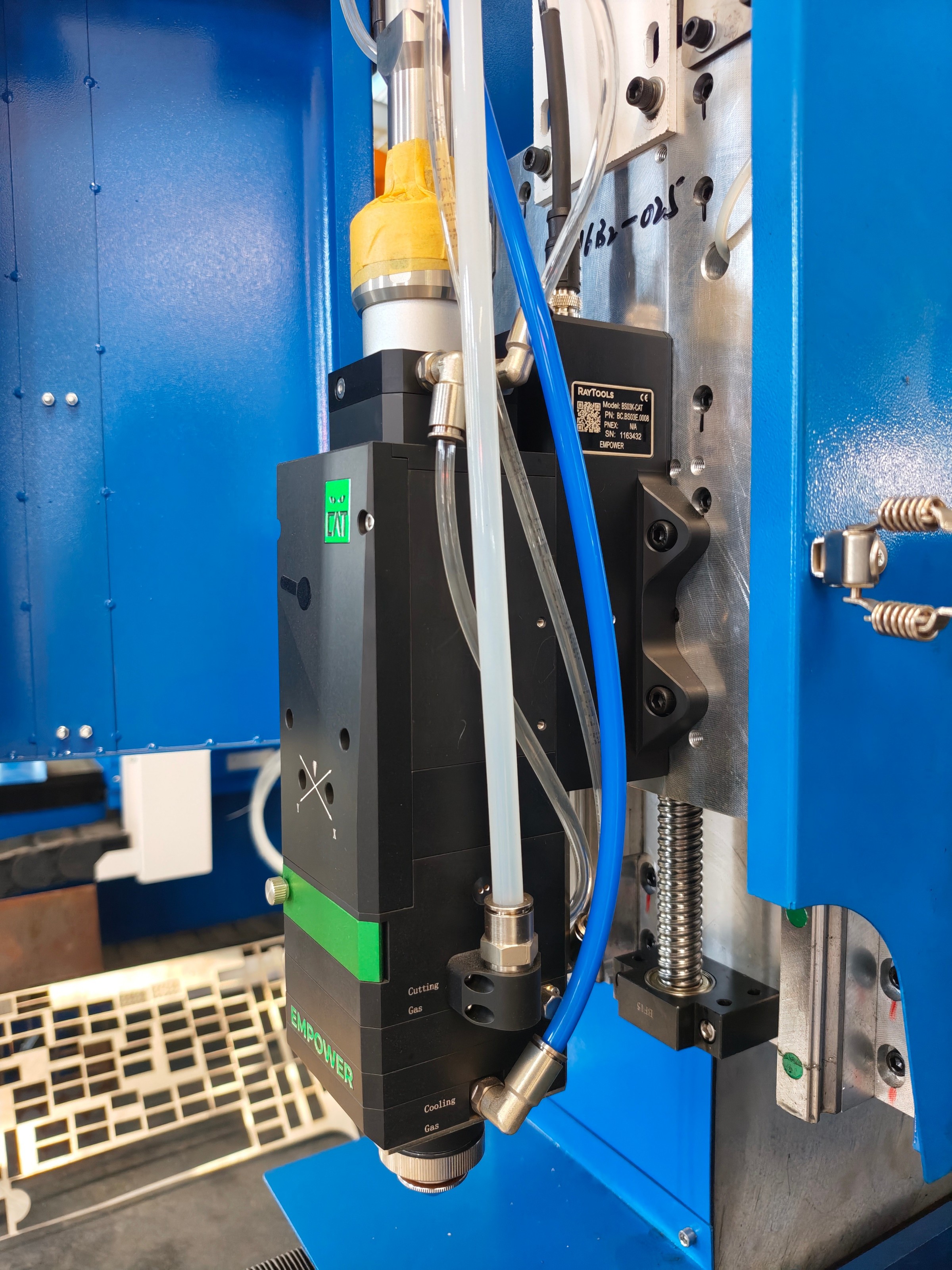

Cutting head
Raytools intelligent laser cutting head with anti-collision and auto-focus, stable cutting performance, easy maintenance for various metal sheets.

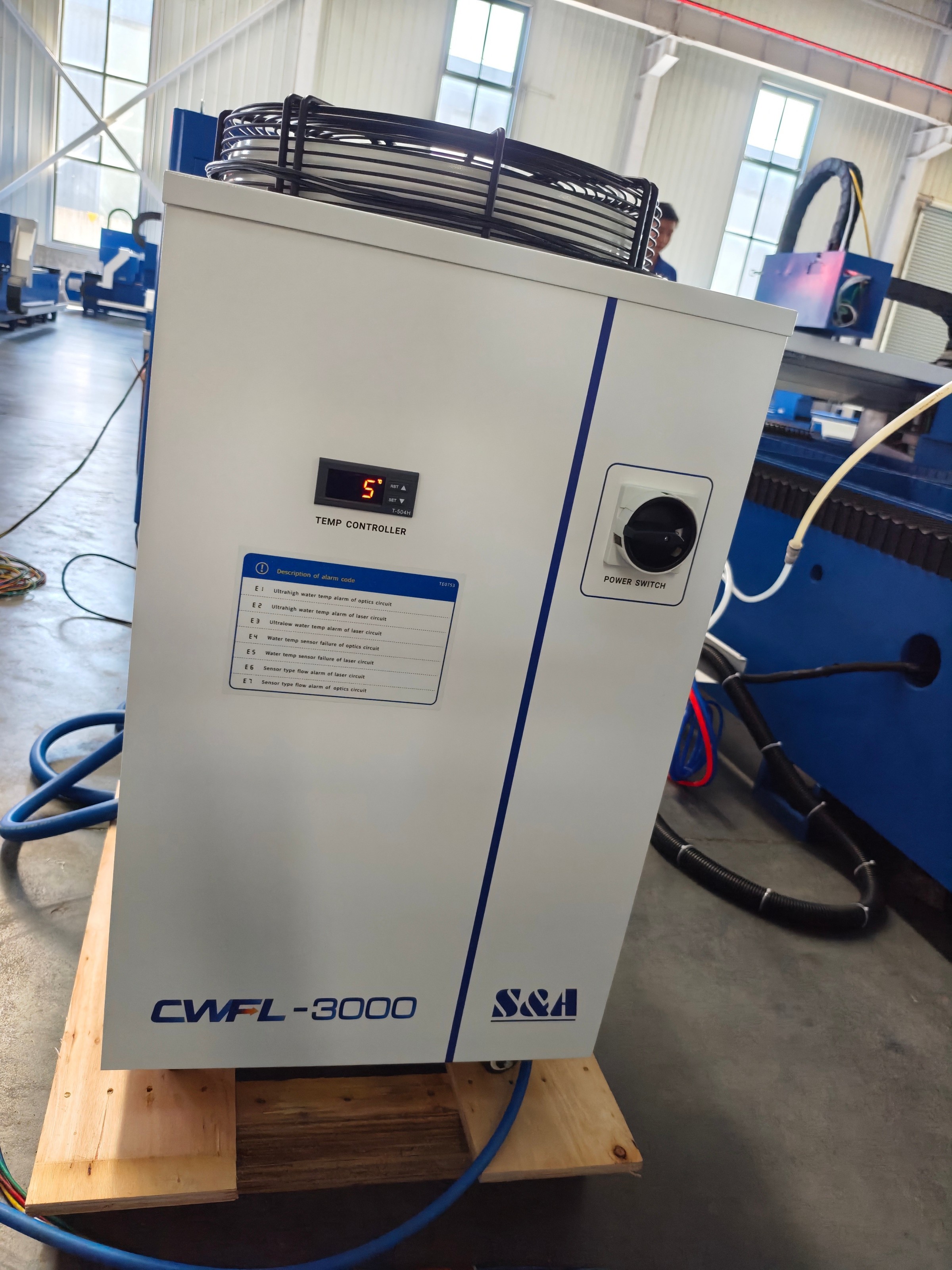

Chiller
Precise constant temperature cooling for laser source and optical parts, stable cutting performance with multi-safety protection for long-term reliable operation.

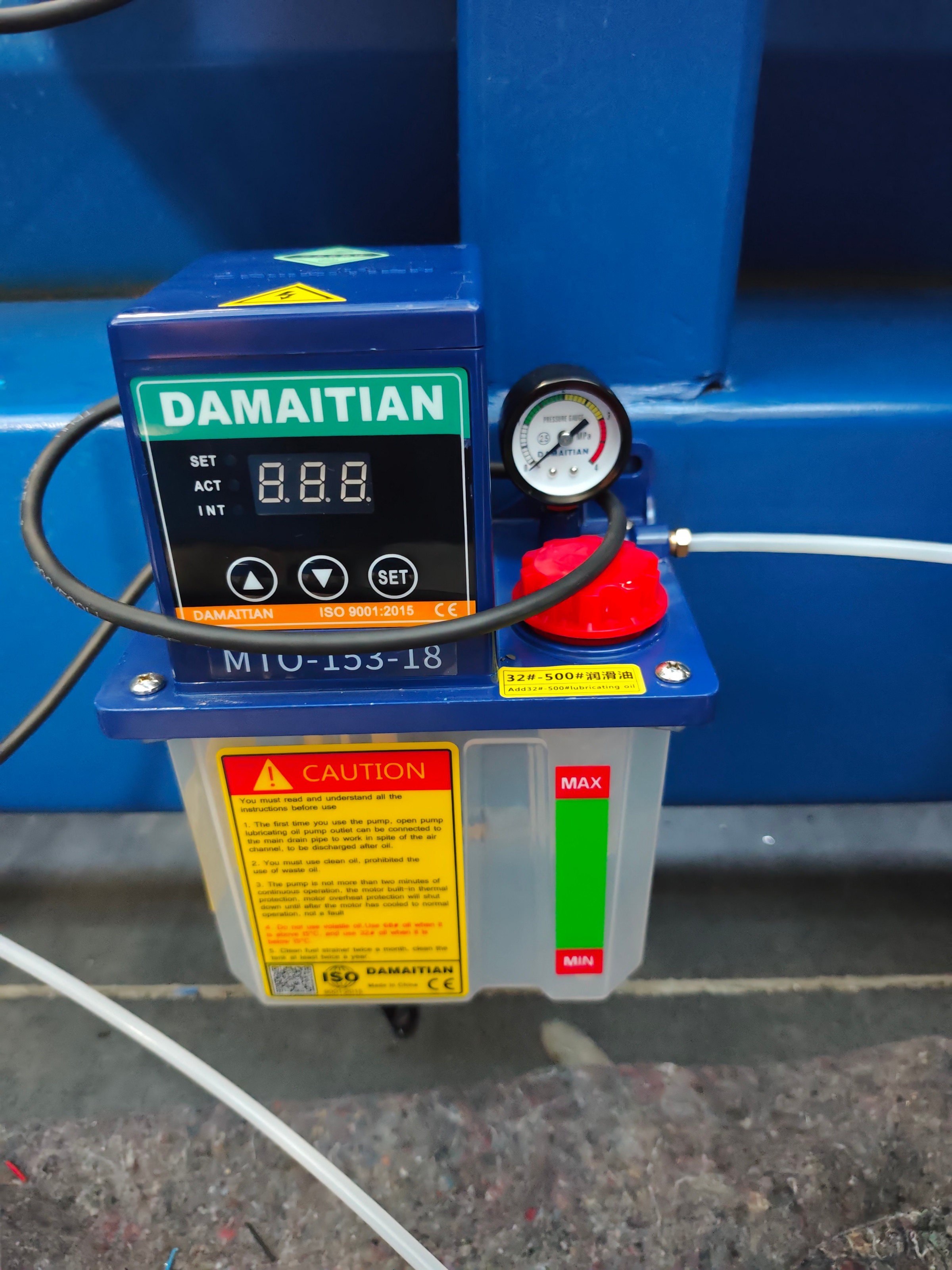

Automatic Lubrication
Timed quantitative lubrication for transmission parts, reduce wear, cut maintenance workload and guarantee continuous high-precision operation.

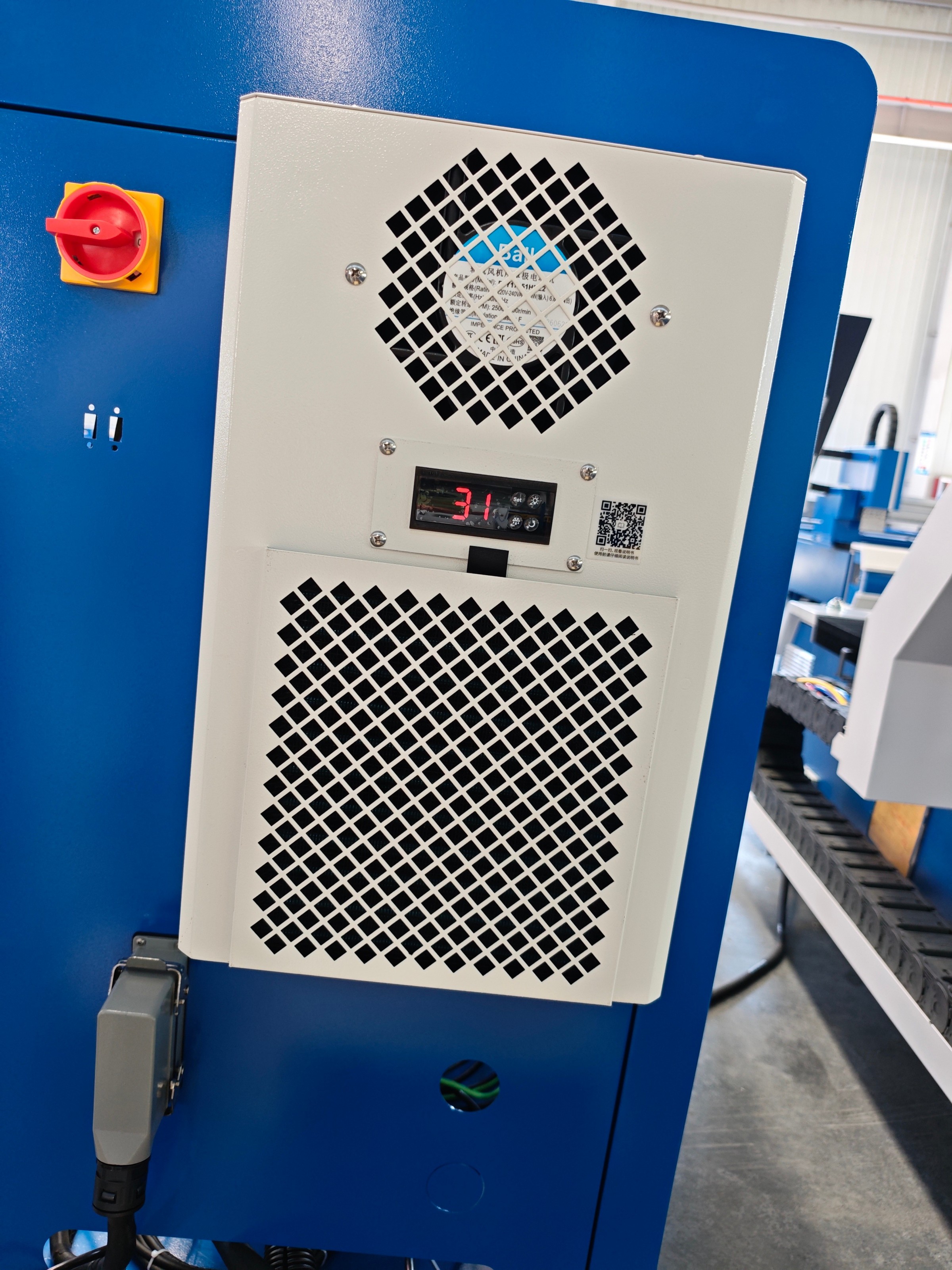

Air condition
Constant-temperature control cabinet (cooling or heating) ensuring the normal operation of electrical components.

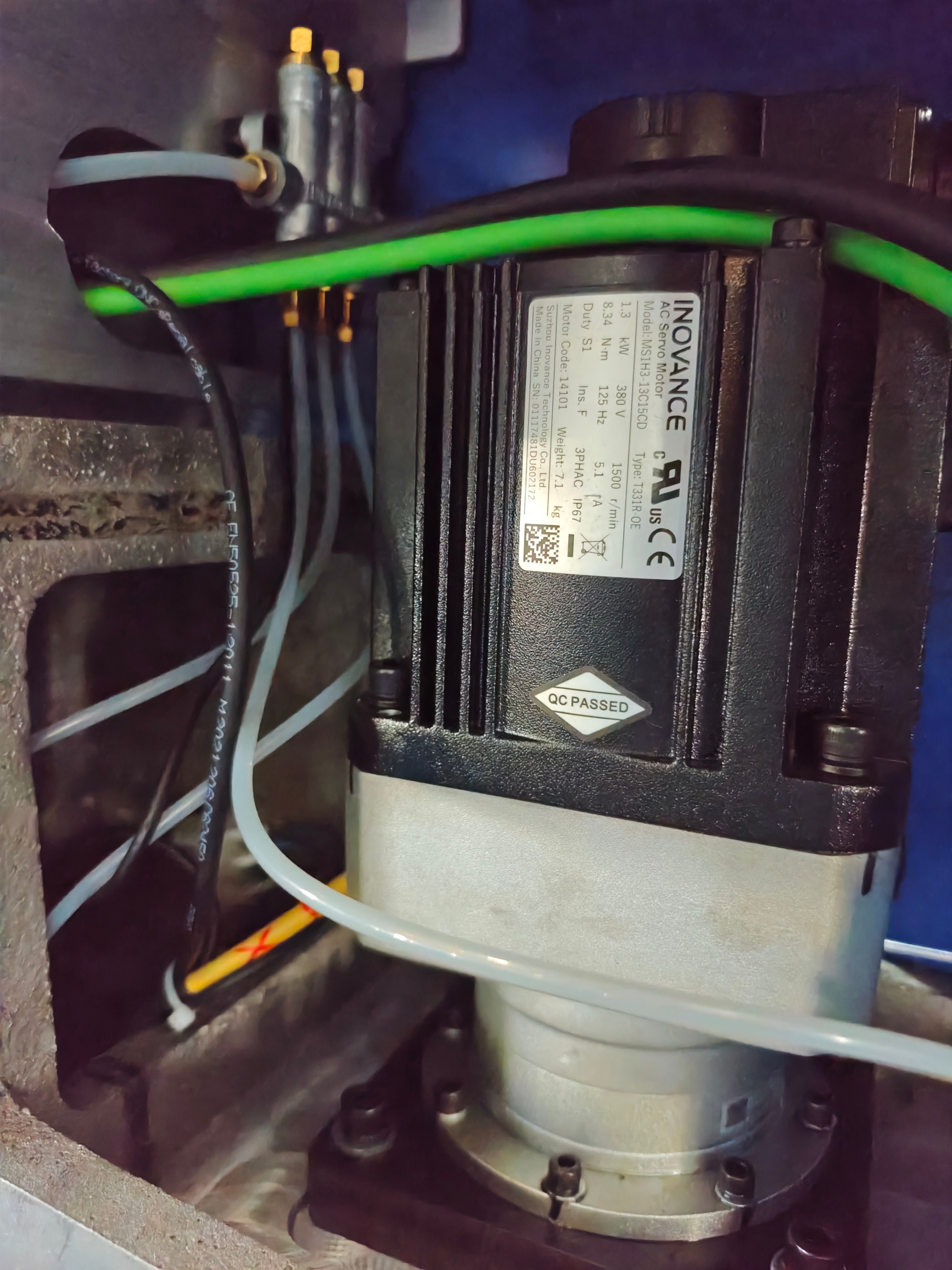

Motor & Driver
Inovance servo motor features high precision and vibration suppression, excellent gantry synchronization to ensure accurate & stable laser cutting path.

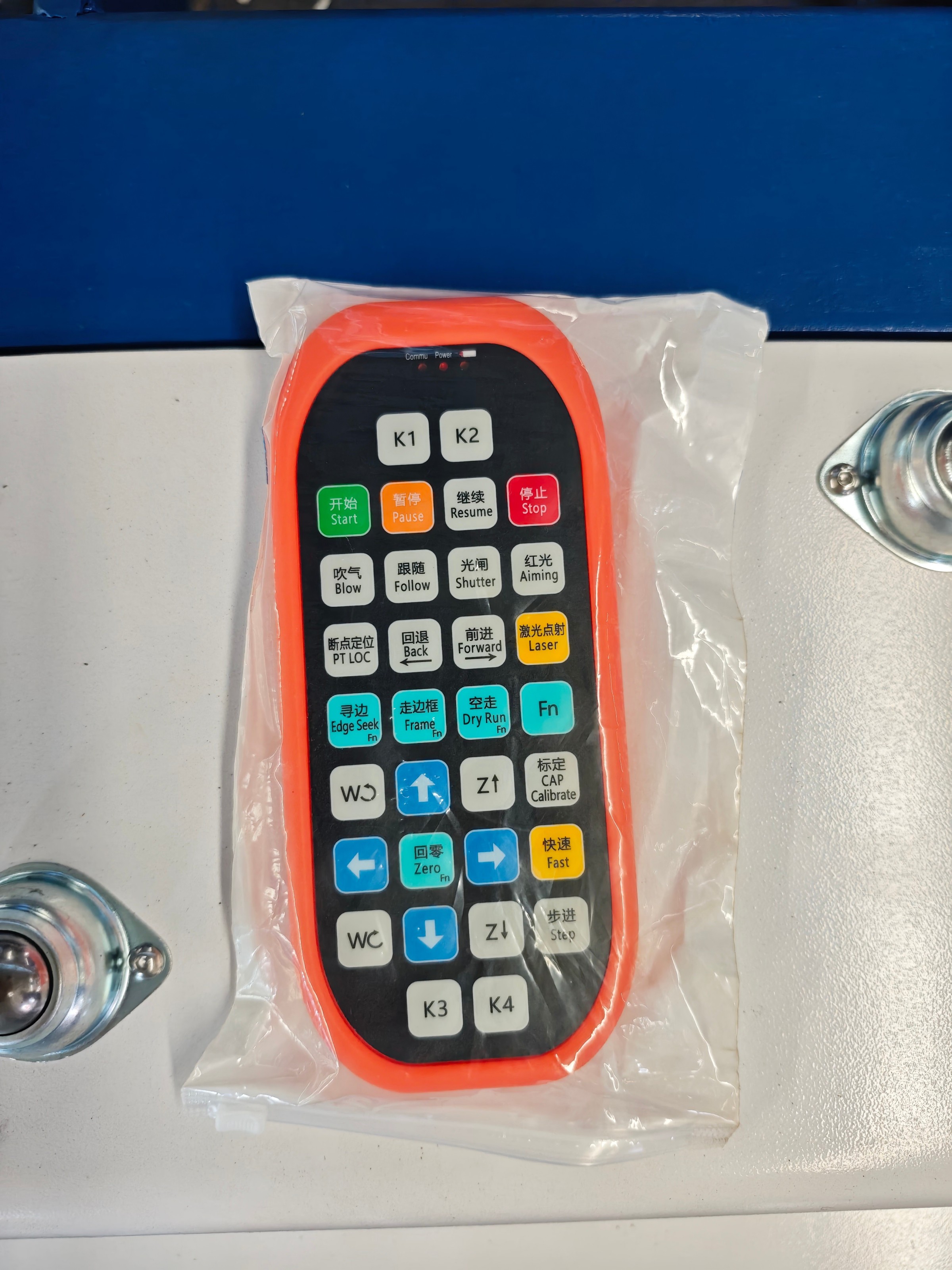

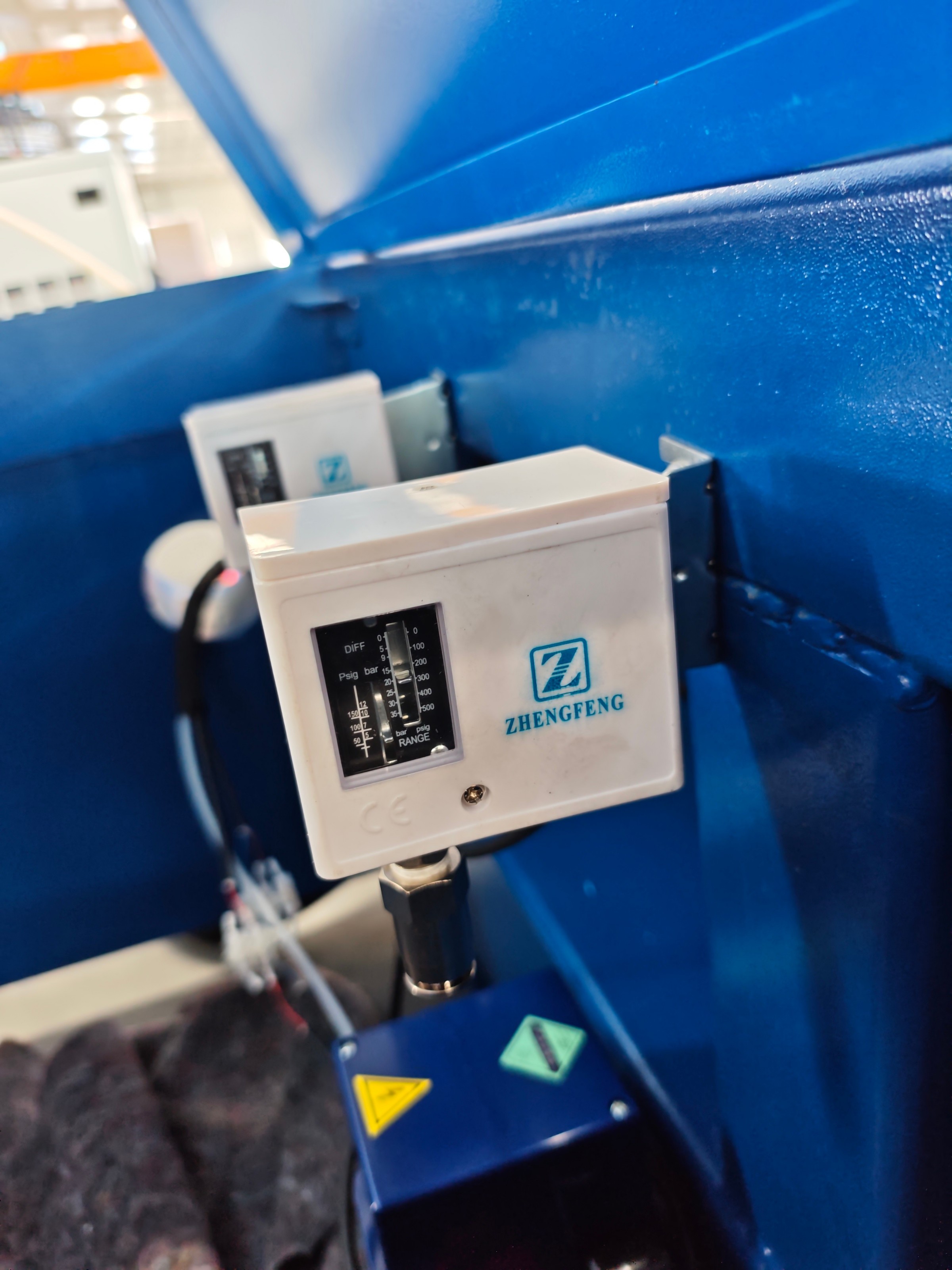

Other details

Technical Specifications

Model	B3216-3KW
Brand	RISTEC
Working area	3200*1600mm (customized)
Structure	Heavy duty steel plate
Control box	Independent in front of the machine

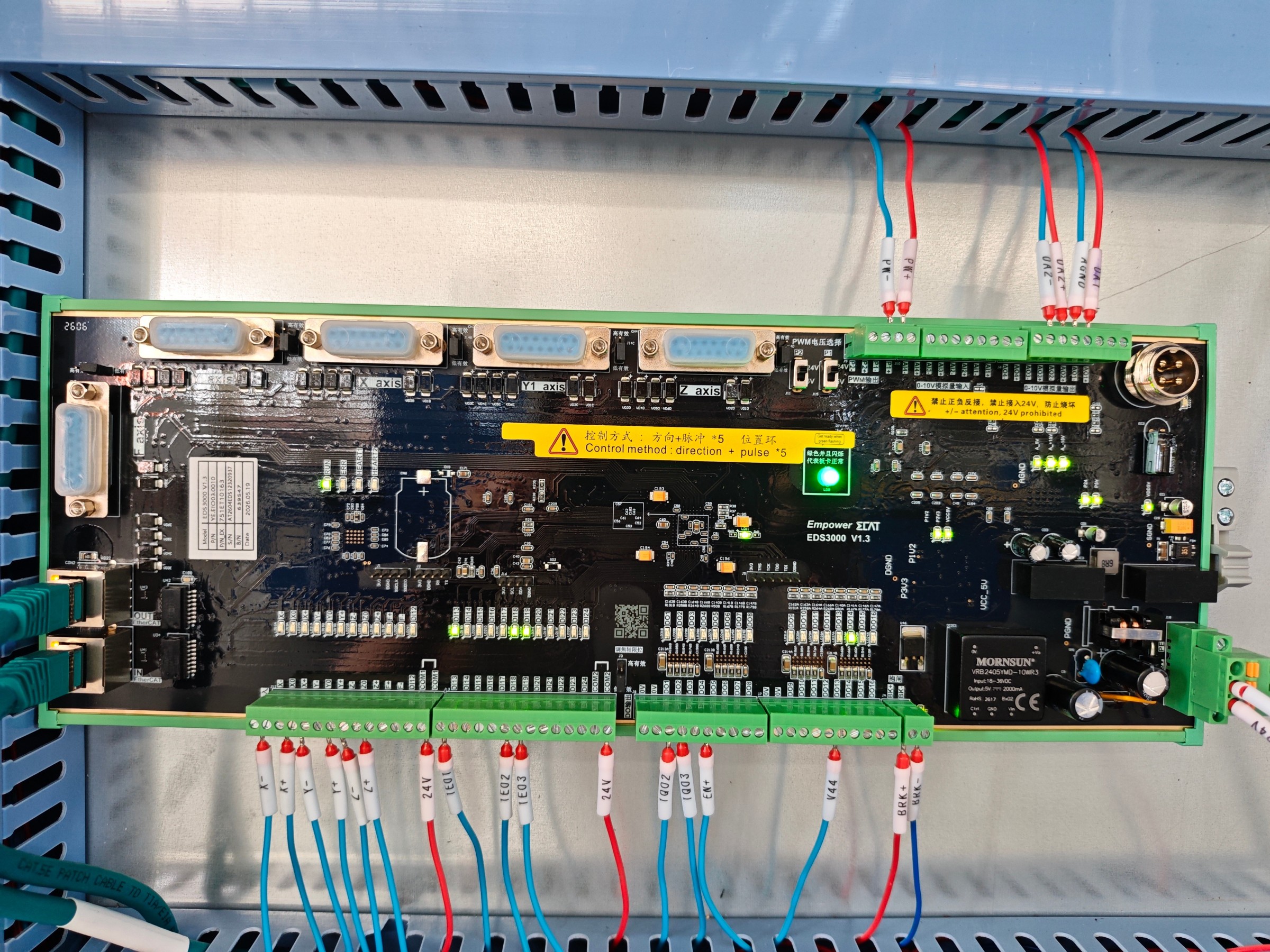

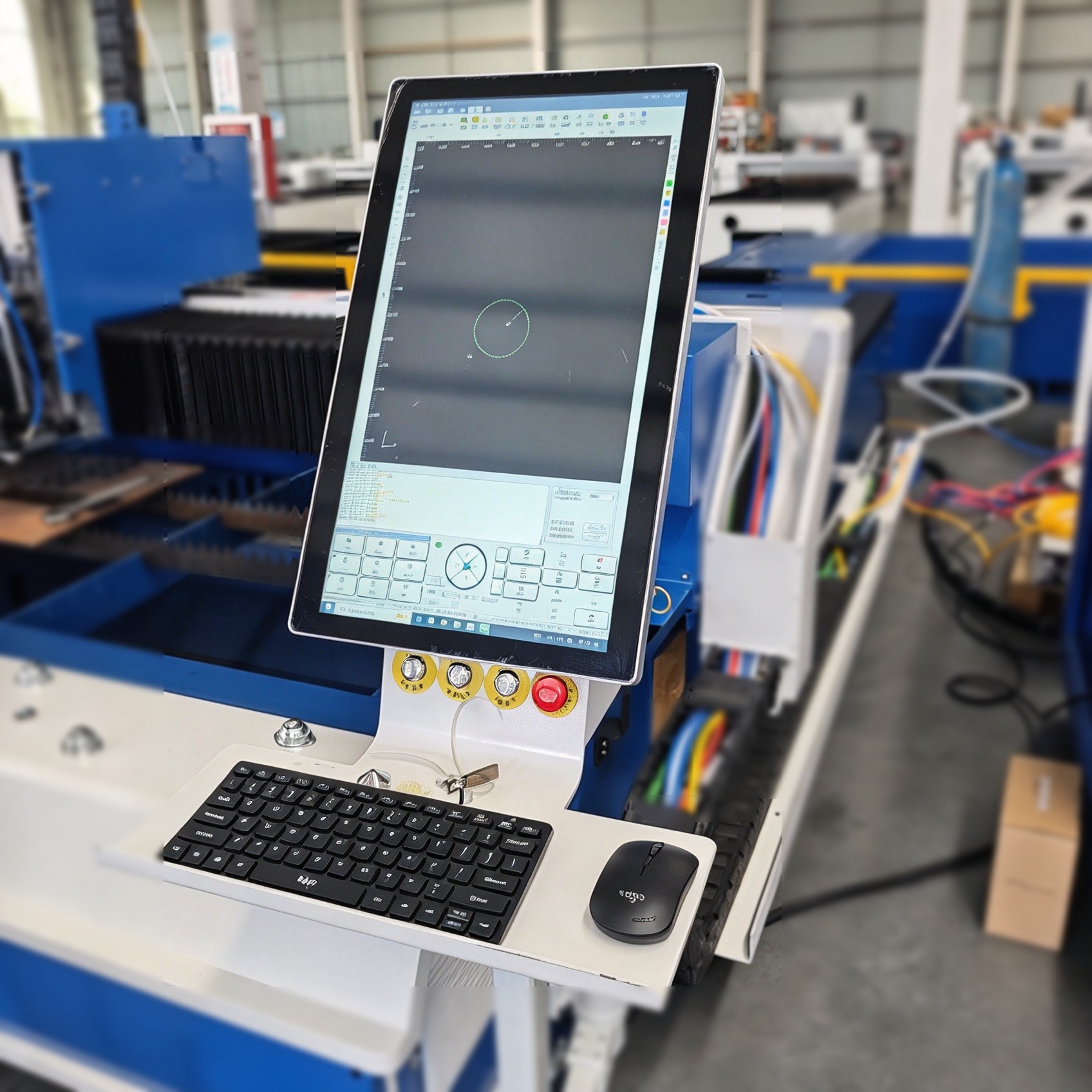

Controller	Raytools-XC3000 plus (AUTO NEST)
Laser source	MAX MFSC3000C
Cutting head	Raytools BS03K-CAT
Max cutting speed	40m/min
Motor driver	Inovance servo
Reducer	Shimpo Japan
Guide rails	HIWIN, Y-30mm, X-25mm, Z-20mm

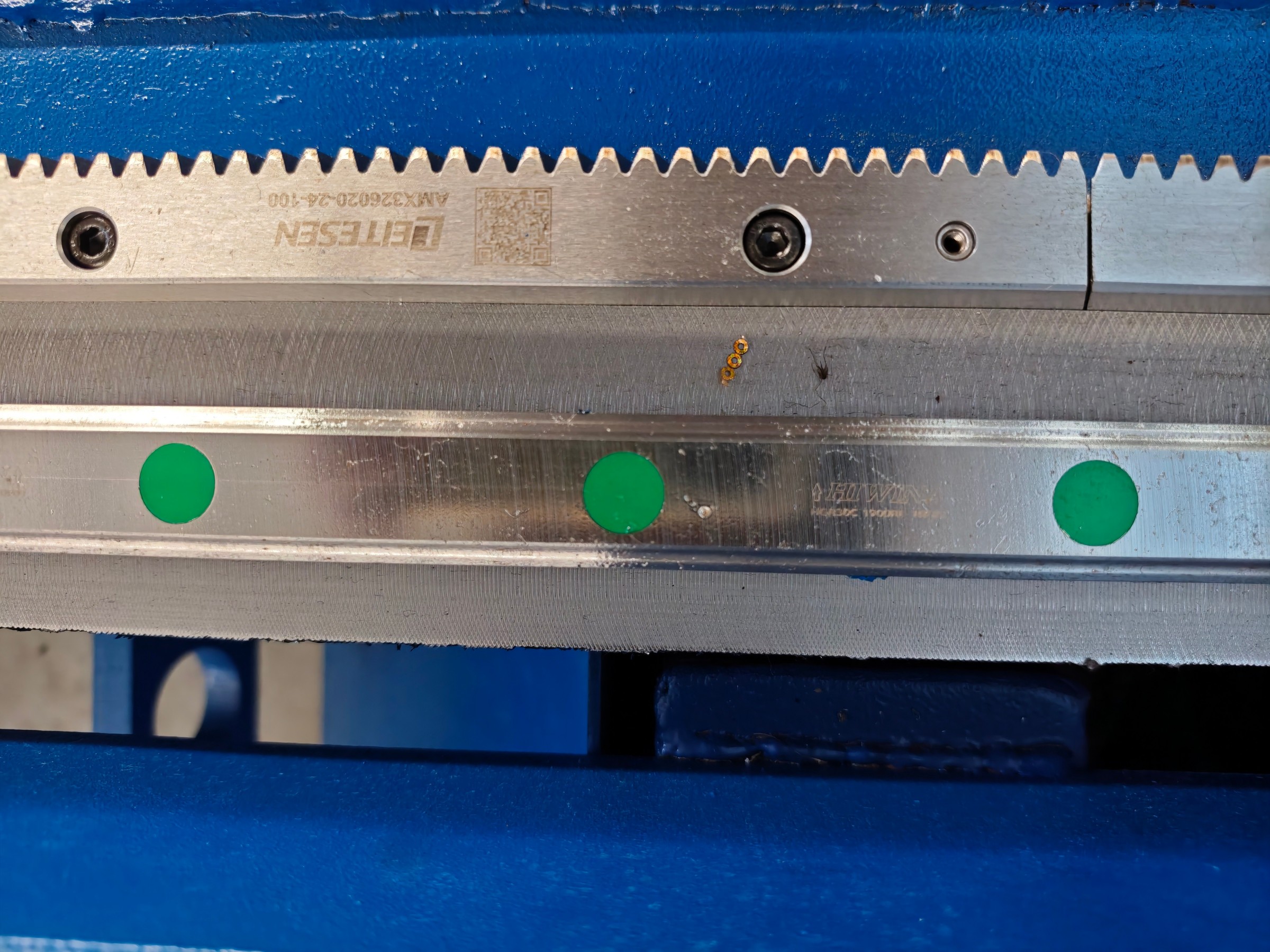

Helical rack	German Geitesen 2M
Chiller	S&A 3000
Electrical device	Schneider France

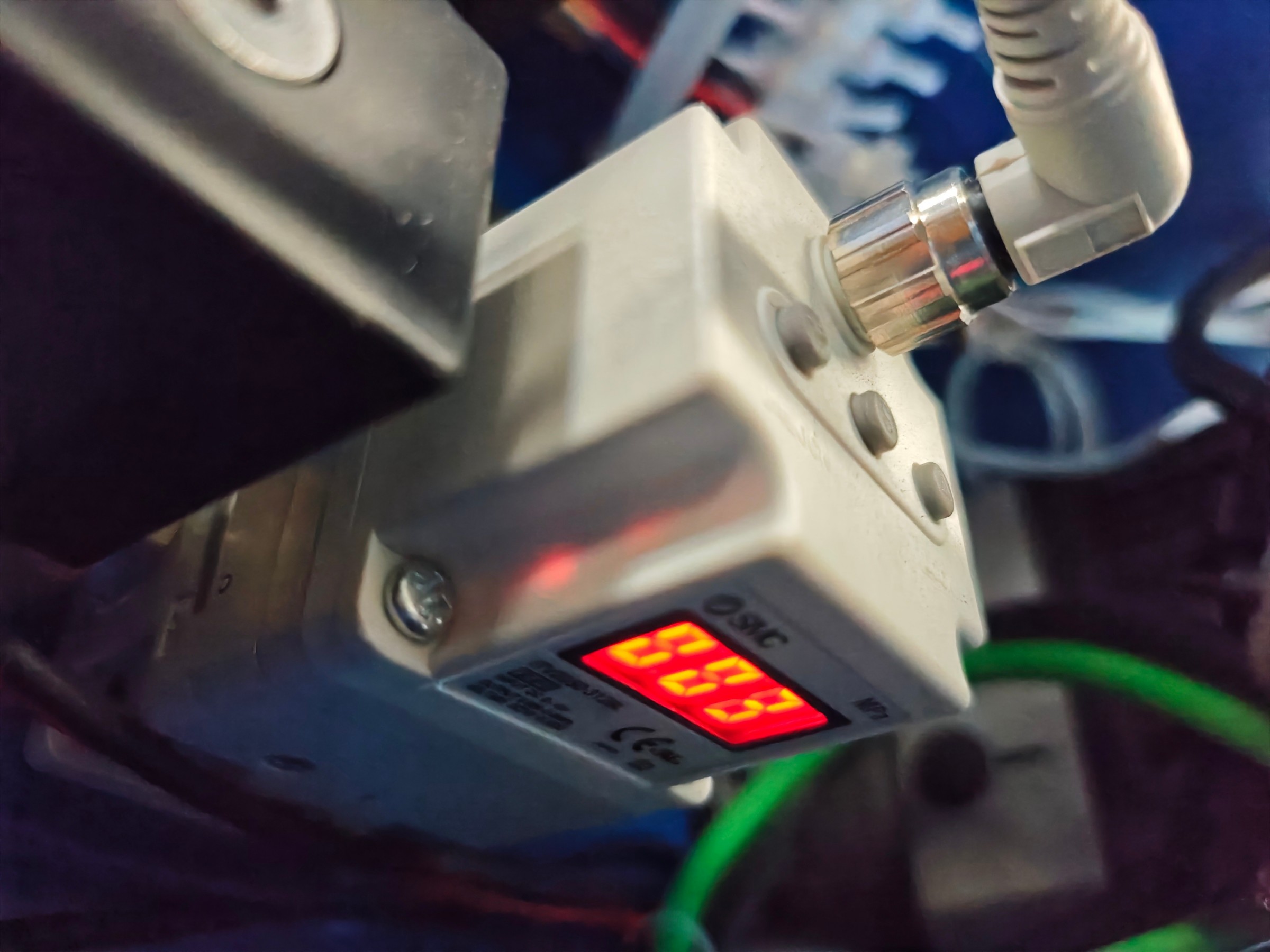

Proportional valve	SMC
Safety valve	Oxygen & Nitrogen
Lubrication	Automatic
Fan	3kw
Air condition	Independent control box
Tool box	Lens, Copper mouth, Feet
Working voltage	380V, 3 Phase, 50HZ (customized)

Key Advantages of Metal Sheet Fiber Laser Cutter

High Cutting Precision: Narrow kerf, tiny dimensional error, smooth cutting edge to save secondary polishing work.
Fast Cutting Speed: Higher processing efficiency than traditional machines at the same power to boost productivity.
Low Energy Consumption & Cost Saving: High photoelectric conversion rate, low power usage, simple daily maintenance and fewer consumables.
Minimal Thermal Deformation: Concentrated heat and small heat-affected zone to avoid warping on thin plates.
Cut Complex Shapes: Direct cutting from CAD drawings, no mould required, fast switch between workpieces.

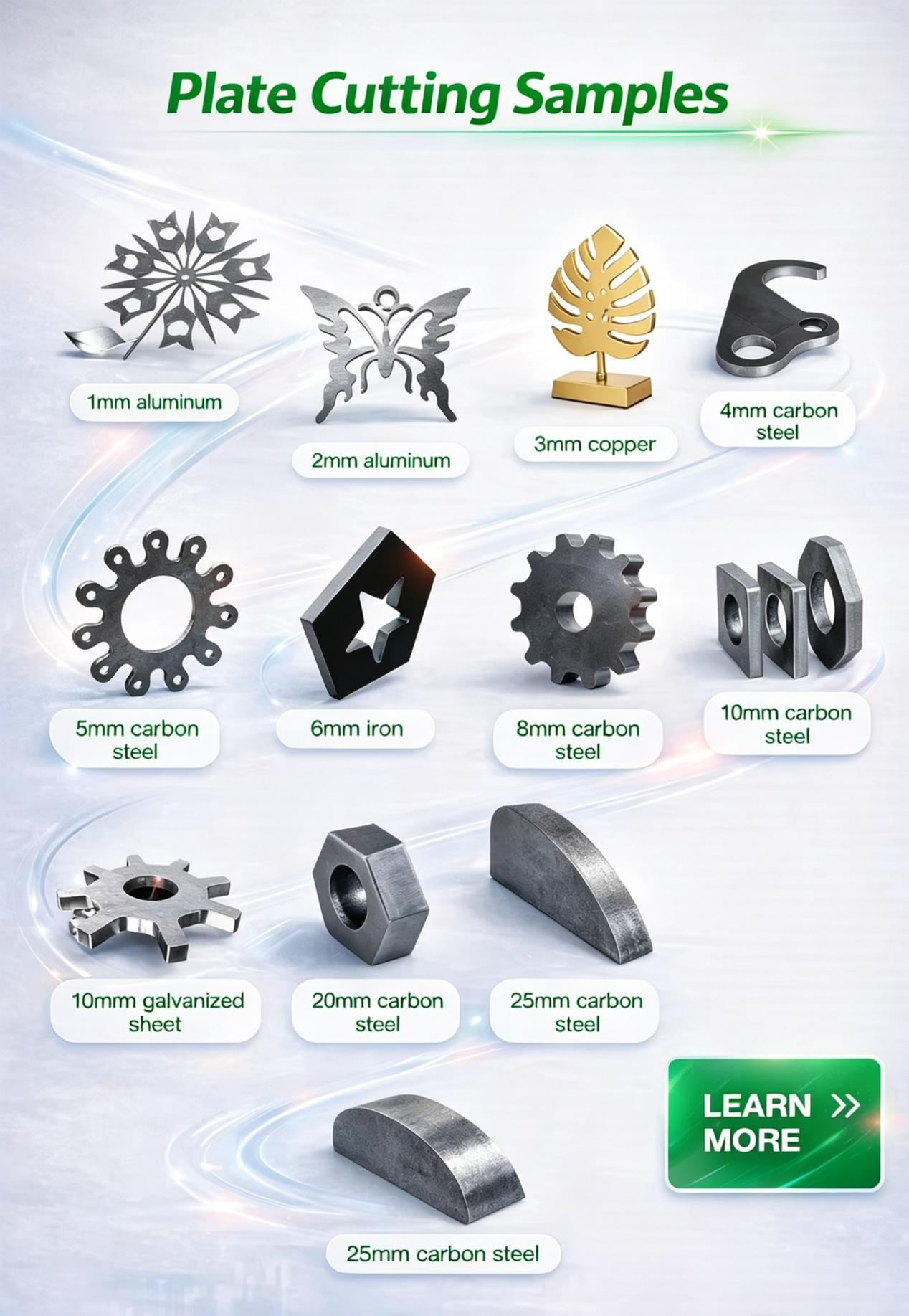

Wide Metal Material Compatibility: Works for carbon steel, stainless steel, aluminum alloy, brass, red copper, galvanized sheet, etc.
Stable & Easy Maintenance: No optical lenses in fiber laser source, low wear, long service life and low failure rate.

How to choose your suitable machine?

1. Confirm Materials & Max Cutting Thickness: Core selection basis: thicker plates need higher laser power. Special process is recommended for high-reflective metals like aluminum and copper.
2. Max Sheet Size: Select worktable according to sheet dimension, e.g. 3015 (3000×1500mm), 4020 (4000×2000mm). Reserve extra space for loading.
3. Calculate Daily Production Capacity: High-speed model preferred for mass thin-plate production. Choose machine with proper power margin for variable orders.
4. Workshop & Power Supply Check: Check site space, load capacity and stable 380V industrial power, reserve position for dust remover.
5. Budget & Operating Cost: Not only machine price, but also power cost, spare parts and maintenance expense.
6. Contact us so we can provide best service for you.

Video

RISTEC, Machine manufacturer

As manufacturer with more than 20 years experience, we provide all machine life time service to solve your after-sales problem.

Customized color

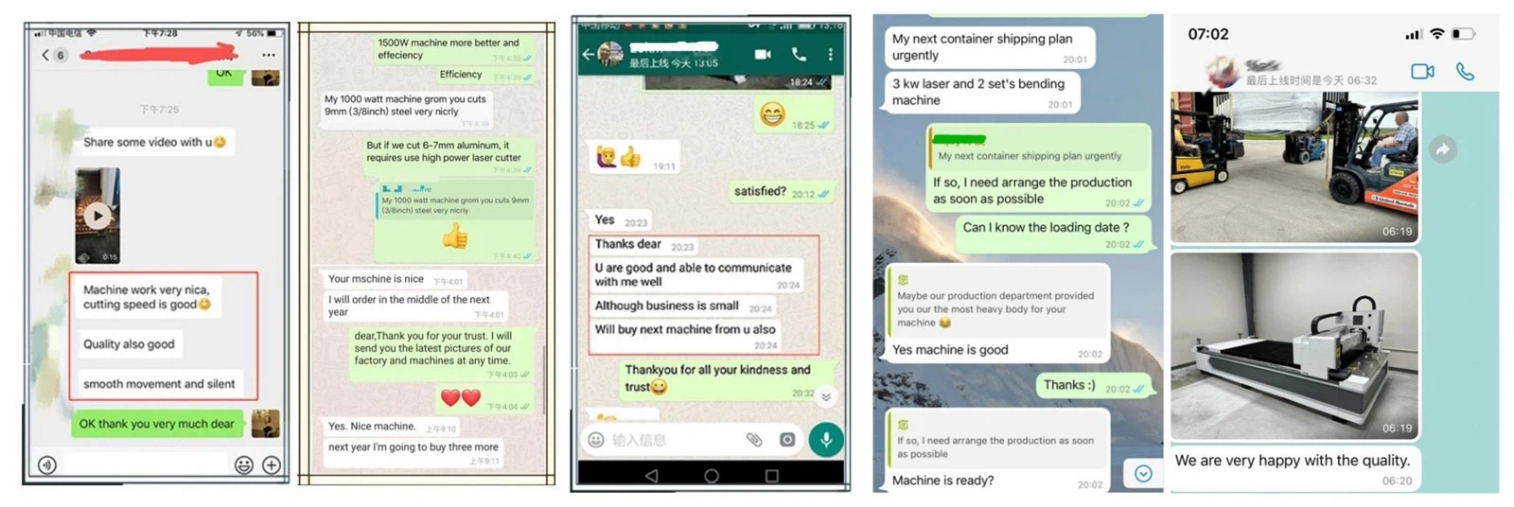

Customer Feedback of Metal Sheet Fiber Laser Cutter

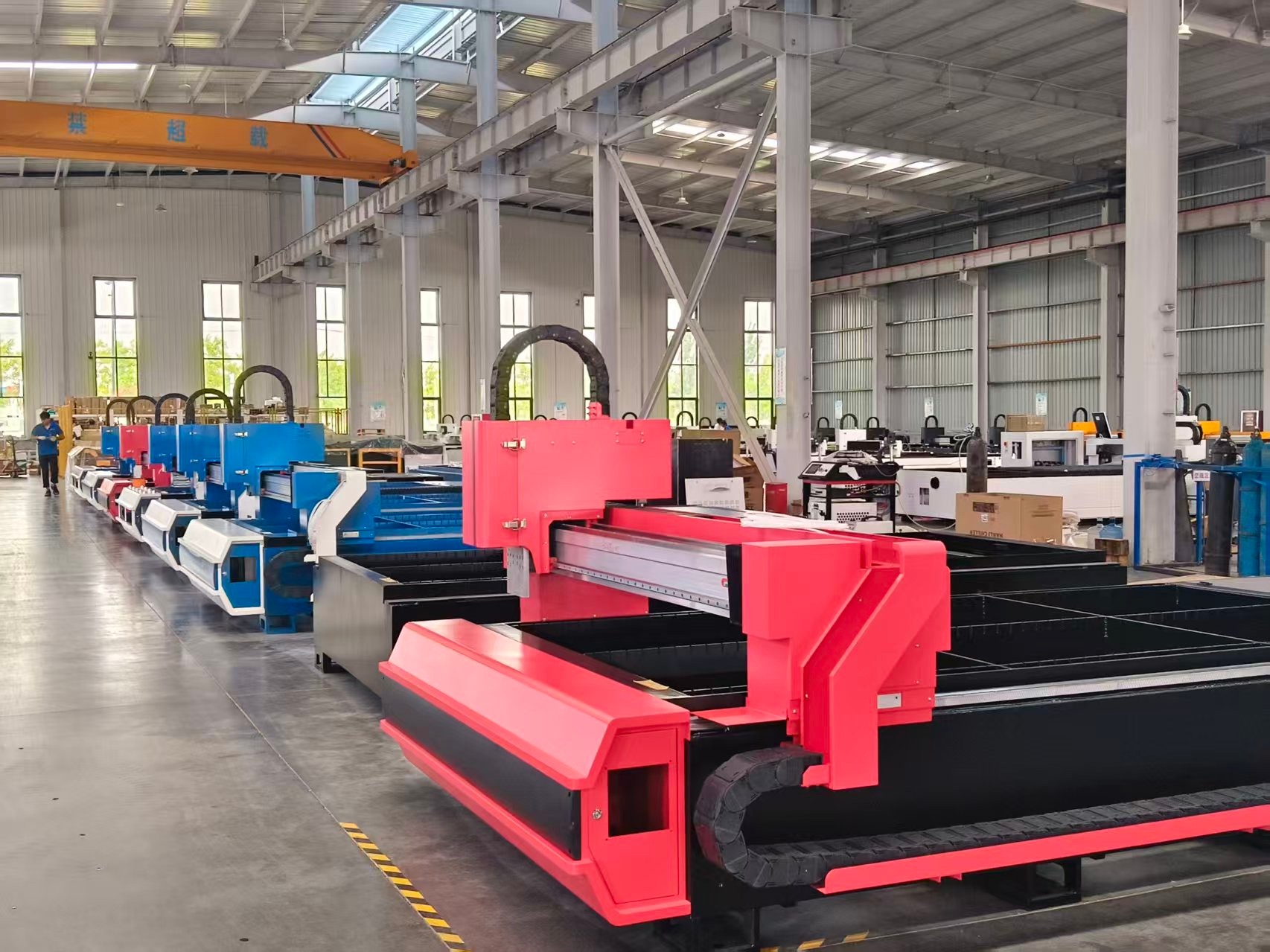

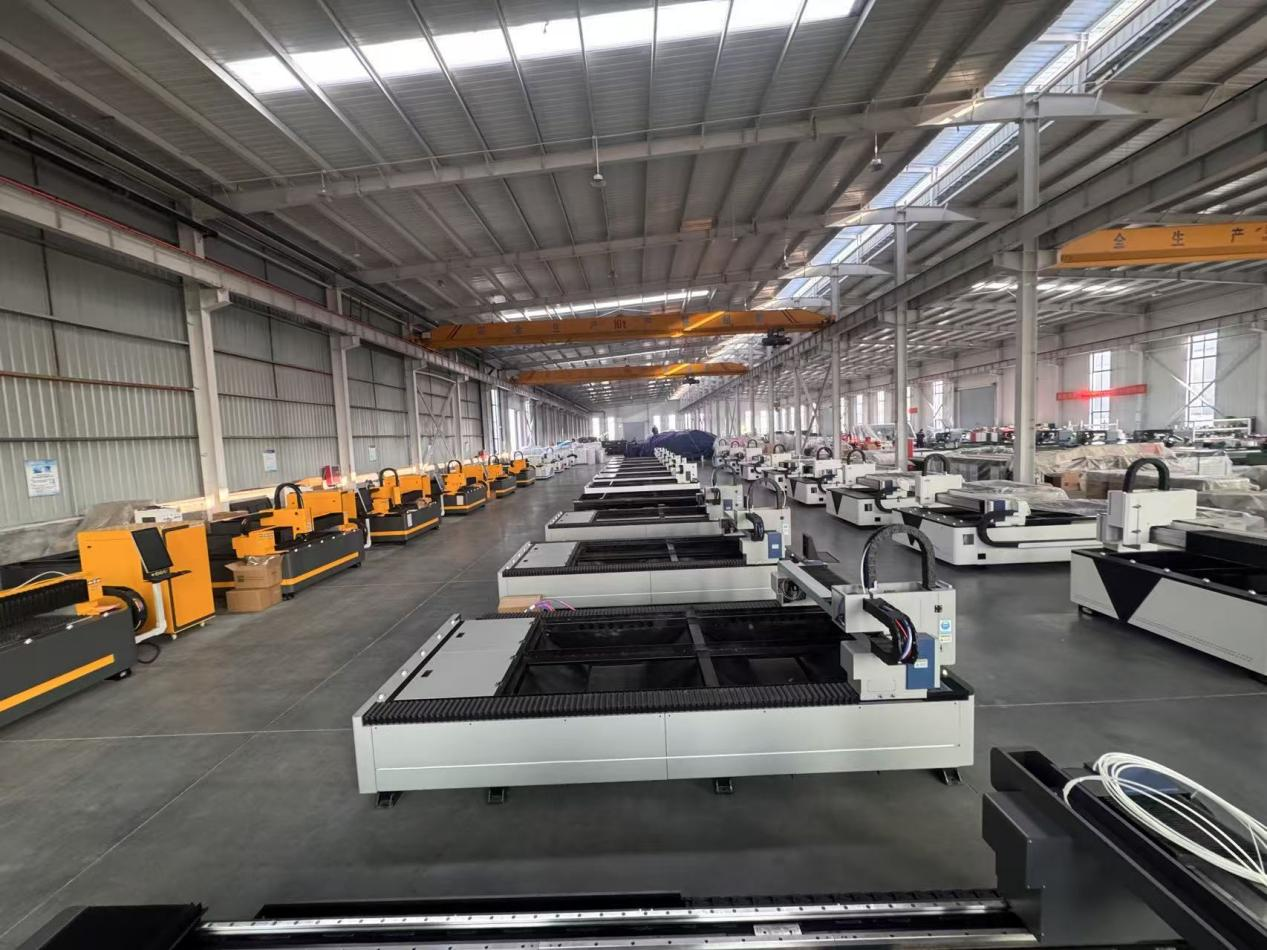

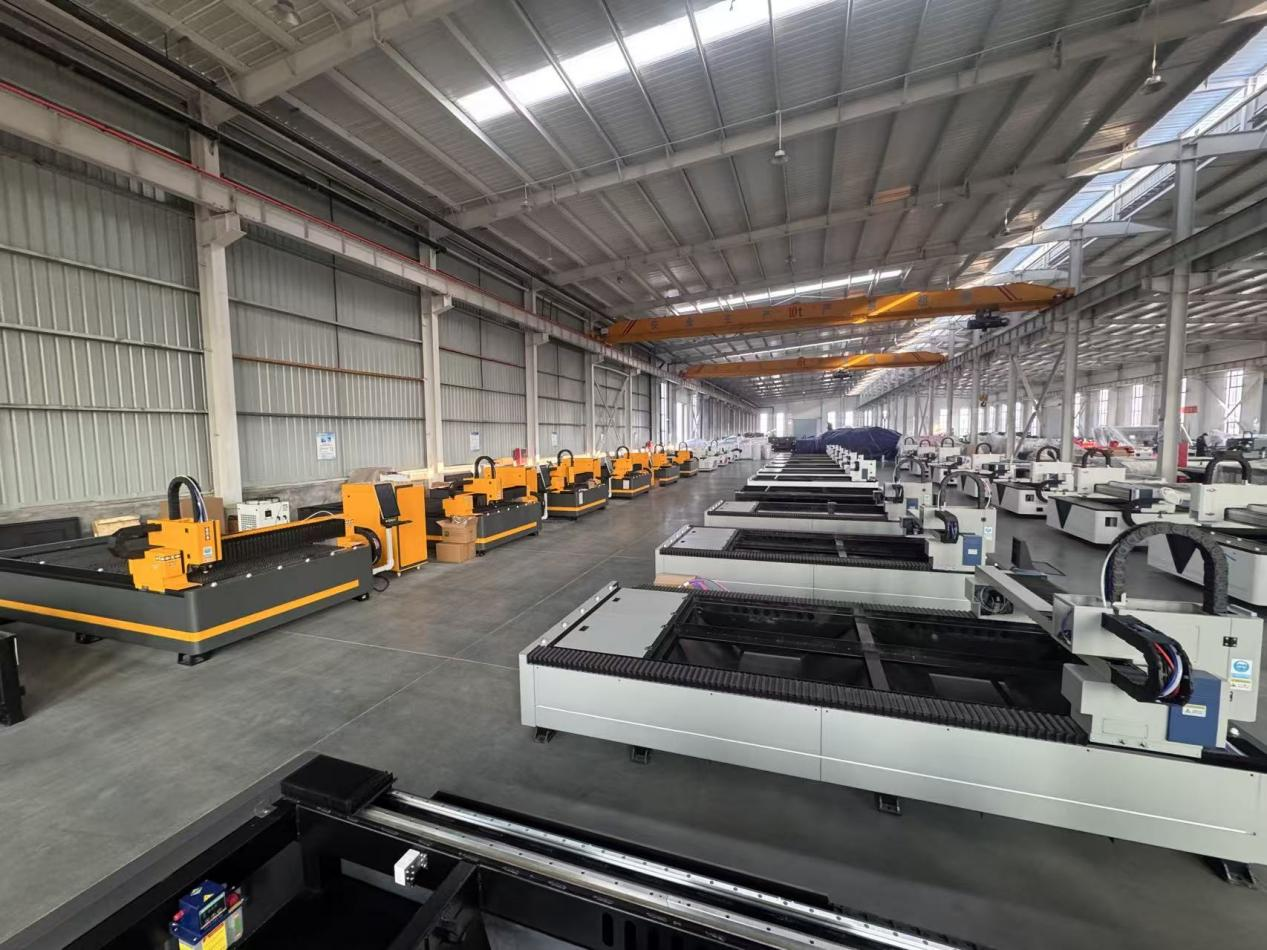

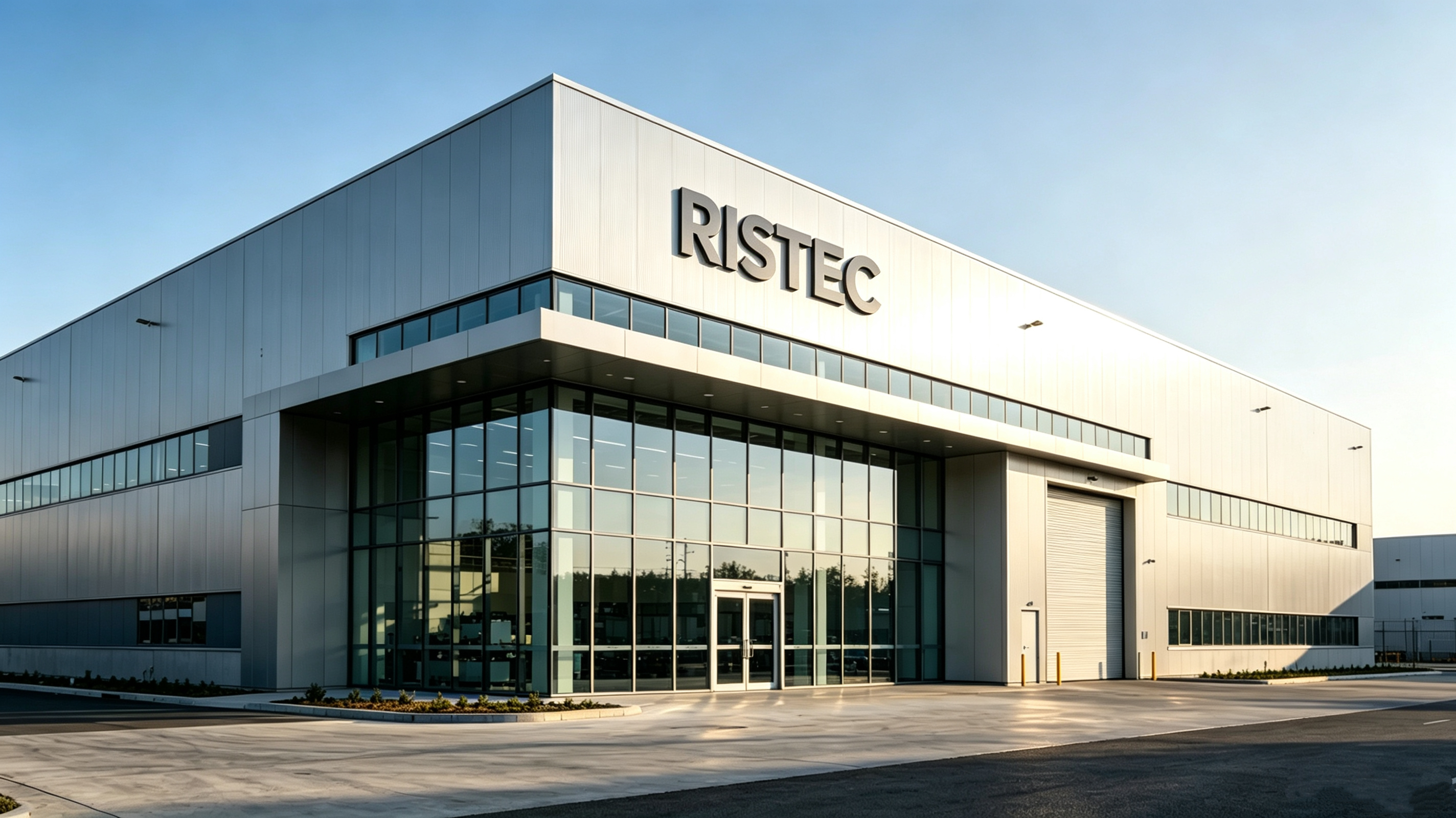

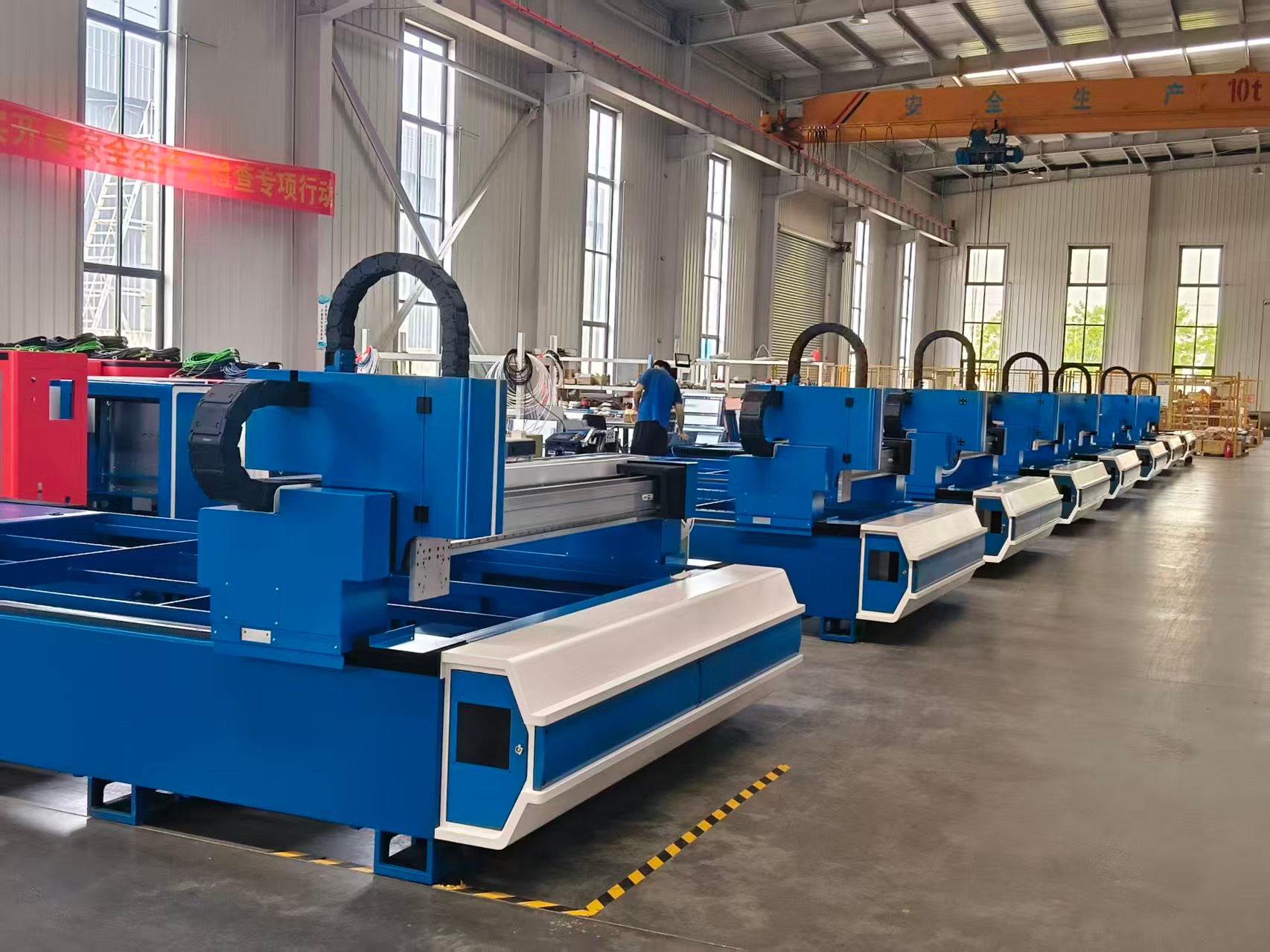

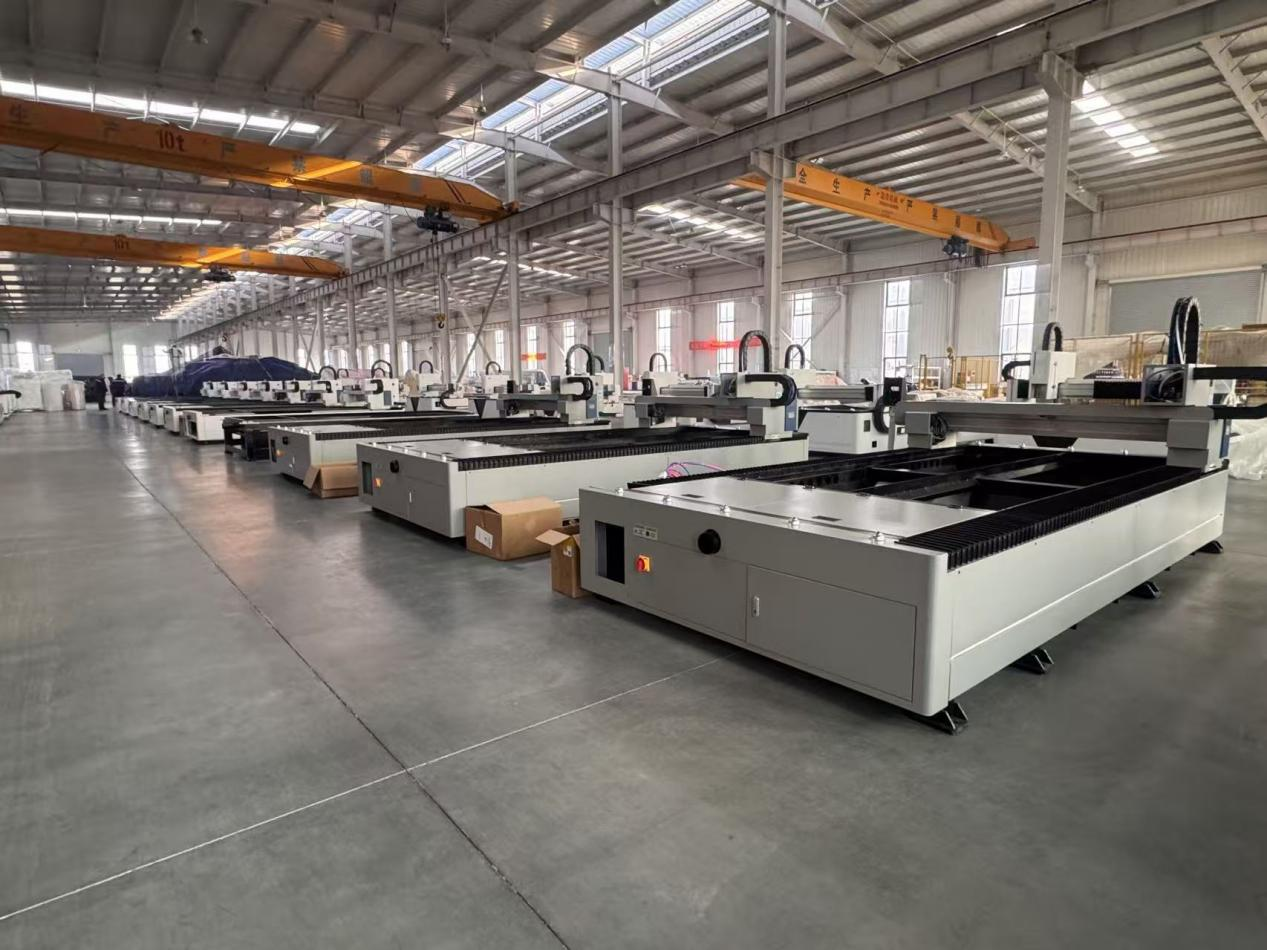

RISTEC office and Factory
