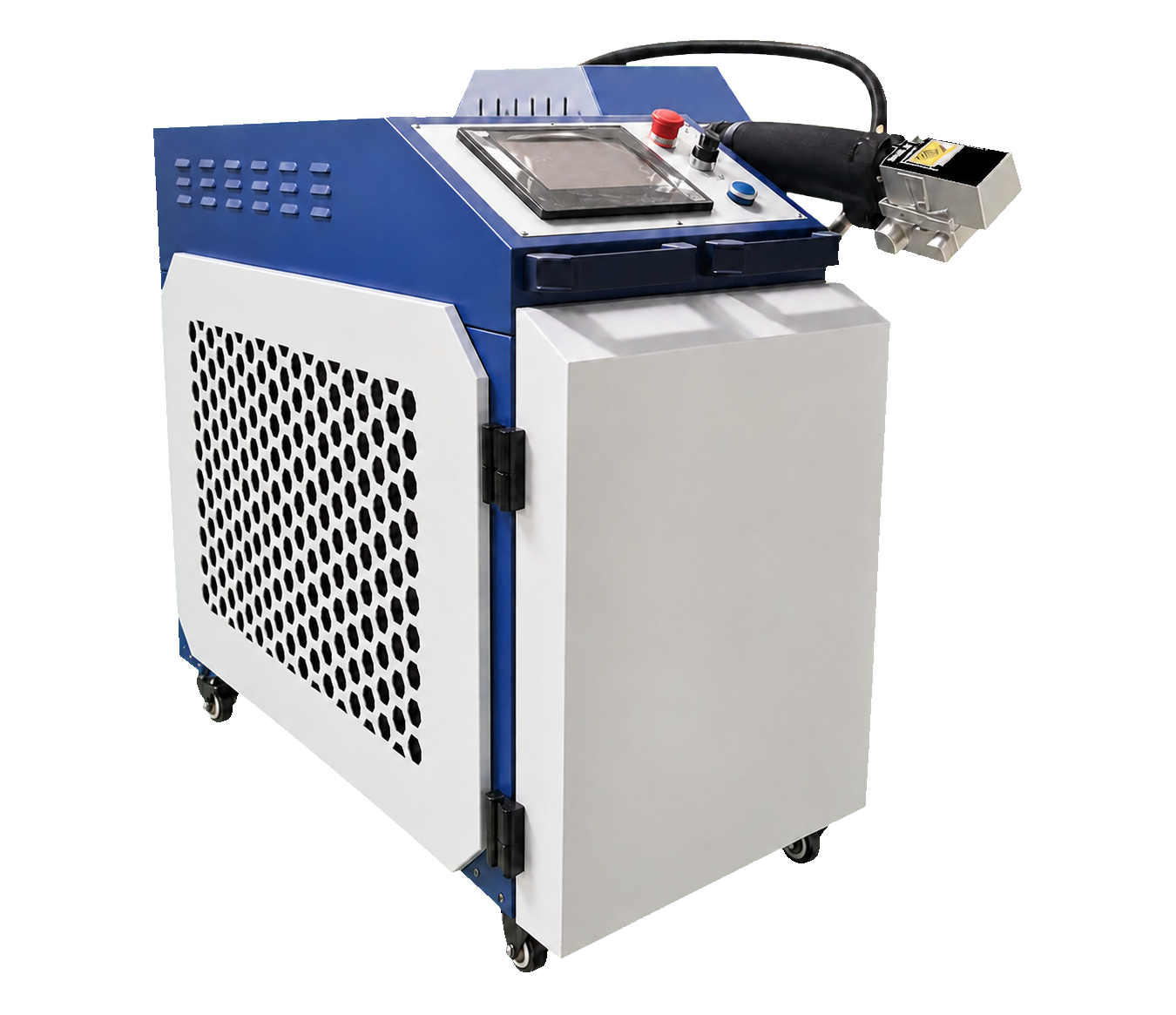

Laser Cleaning Rust/Paint Removal Machine

Name: Laser Cleaning Rust/Paint Removal Machine
SKU: 0

The laser cleaning machine is a high‑efficiency, eco -friendly surface treatment equipment. It uses high‑energy laser beams to vaporize and peel off contaminants such as rust, paint, oxide layers, oil stains and coatings on work piece surfaces, without damaging the base material. It replaces traditional sandblasting, chemical pickling and manual polishing processes, widely adopted in metal processing, machinery maintenance, aerospace, auto manufacturing and hardware industries.



Inquiry 

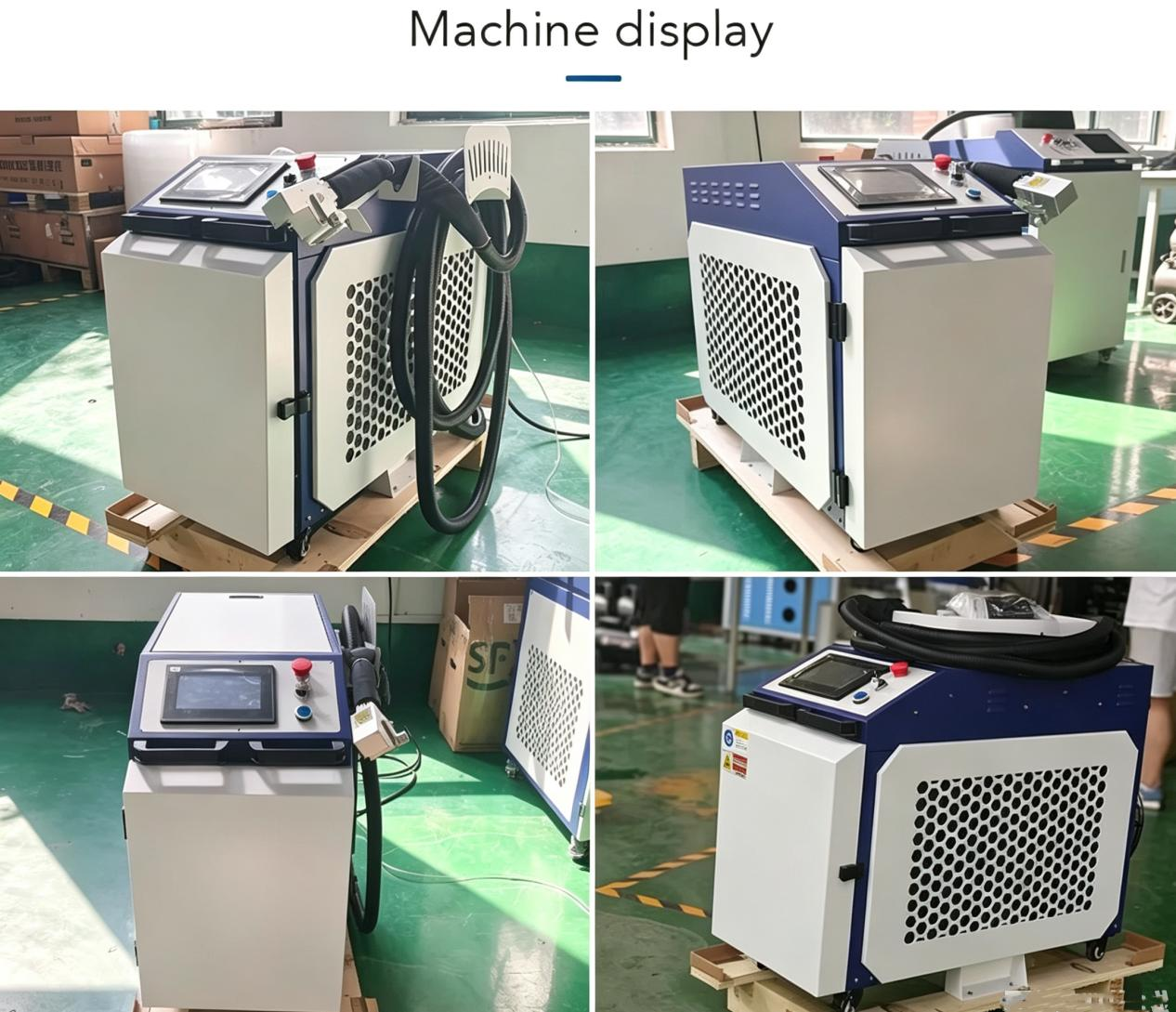

Laser Cleaning RustPaint Removal Machine (2)

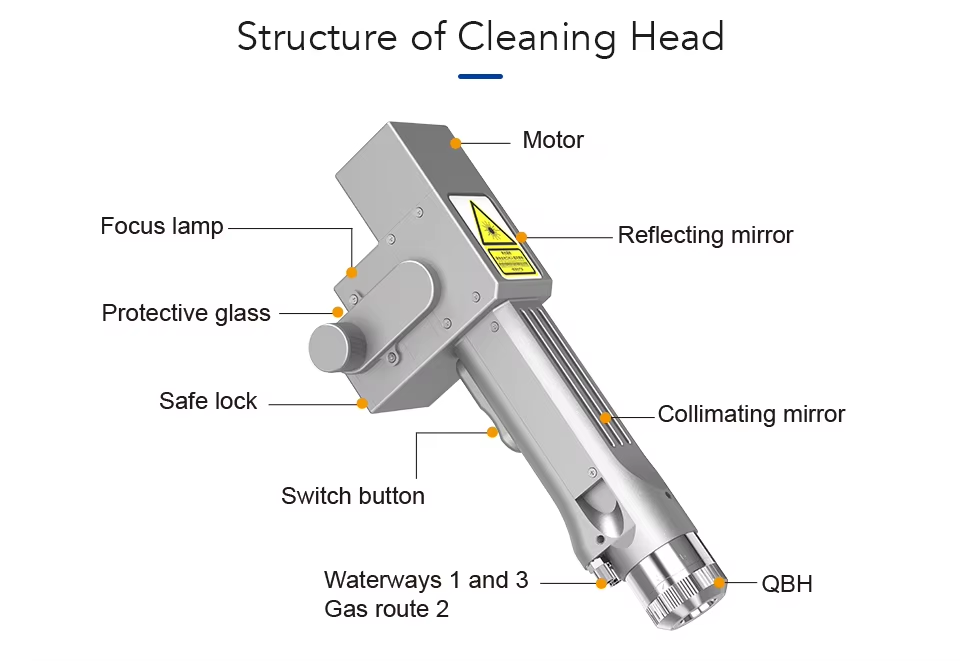

Laser Cleaning RustPaint Removal Machine (3)

Operating Environment
Content	1500E	2000E	3000E
Supply voltage	Single phase220V/380V, 50/60Hz AC
Power consumption	8KW	9KW	12KW
Working environment temperature	\( {5}^{ \circ }\mathrm{C} \sim {40}^{ \circ }\mathrm{C} \)
Working environment humidity	≤80%
Optical Parameters
Average laser power	≥1500W	≥2000W	≥3000W
Power instability	< 2%
Power regulation range (%)	10-100 (Gradient Adjustable)
Repeat frequency (kHz)	20-200 (Gradient Adjustable)
Fiber length	10m
Cooling mode	Water cooling
Cleaning Head Parameters
Scan range (length * width)	0mm~150mm, continuously adjustable;
Scanning frequency	A maximum of 300Hz
Field mirror focal length (mm)	500mm
Focal depth	maximum 10mm
Mechanical Parameters
Machine size (Length, width and height)	About884mm525mm850mm
After packing Machine size (Length, width and height)	About1000mm580mm1050mm
Machine Weight	About90Kg	About100Kg	About130Kg

Core Advantages

✅ Non contact Cleaning
No physical contact with work pieces. Avoid secondary mechanical damage to substrates, suitable for precision parts and complex‑shaped components.

✅ Environment‑friendly & Safe
No chemical solvents, no waste liquid pollution. Minimal dust residue; equipped with safety protection devices for operator safety.

✅ High Efficiency & Easy Operation
Hand‑held lightweight cleaning head, flexible for large or irregular work pieces. Simple parameter setting, low learning cost for operators.

✅ Precise Localized Cleaning
Accurately target designated areas. Remove rust, paint and coating selectively while preserving the intact base material.

✅ Low Long‑term Cost
No consumables required in operation. Stable laser source, long service life, greatly reduces post‑processing and material costs.

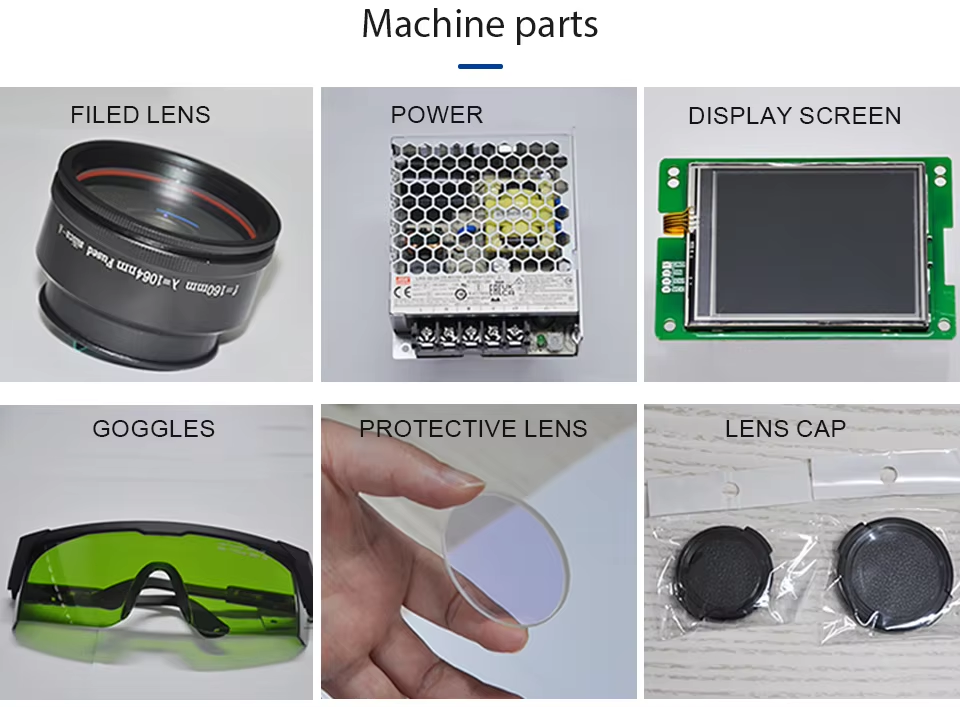

Laser Cleaning RustPaint Removal Machine (5)

Main Application Fields

Metal rust removal: steel, iron, aluminum alloy surface derusting
Paint & coating stripping: old paint layer, protective coating removal
Mold maintenance: mold oil, carbon deposit and oxide cleaning
Aerospace & automotive: component pre‑welding surface treatment
Cultural relic restoration: surface dirt and oxide removal for metal relics
Hardware & machinery: post‑production surface purification of spare parts

Laser Cleaning RustPaint Removal Machine (6)

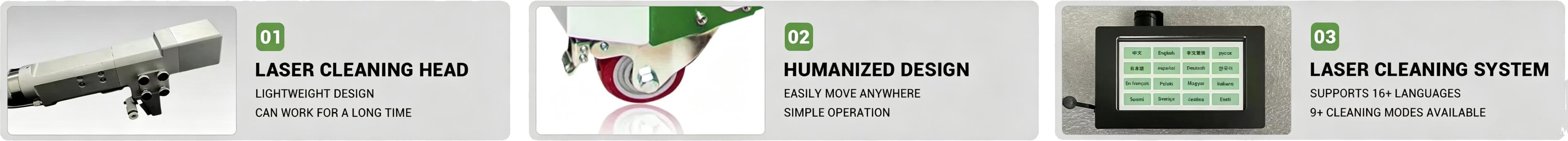

Laser Cleaning RustPaint Removal Machine 1(7)

Our laser cleaning equipment integrates mature optical and control technology. We provide complete machine quality assurance, on‑site operation training and after‑sales technical support. Customized solutions are available for different working conditions and workpiece requirements.

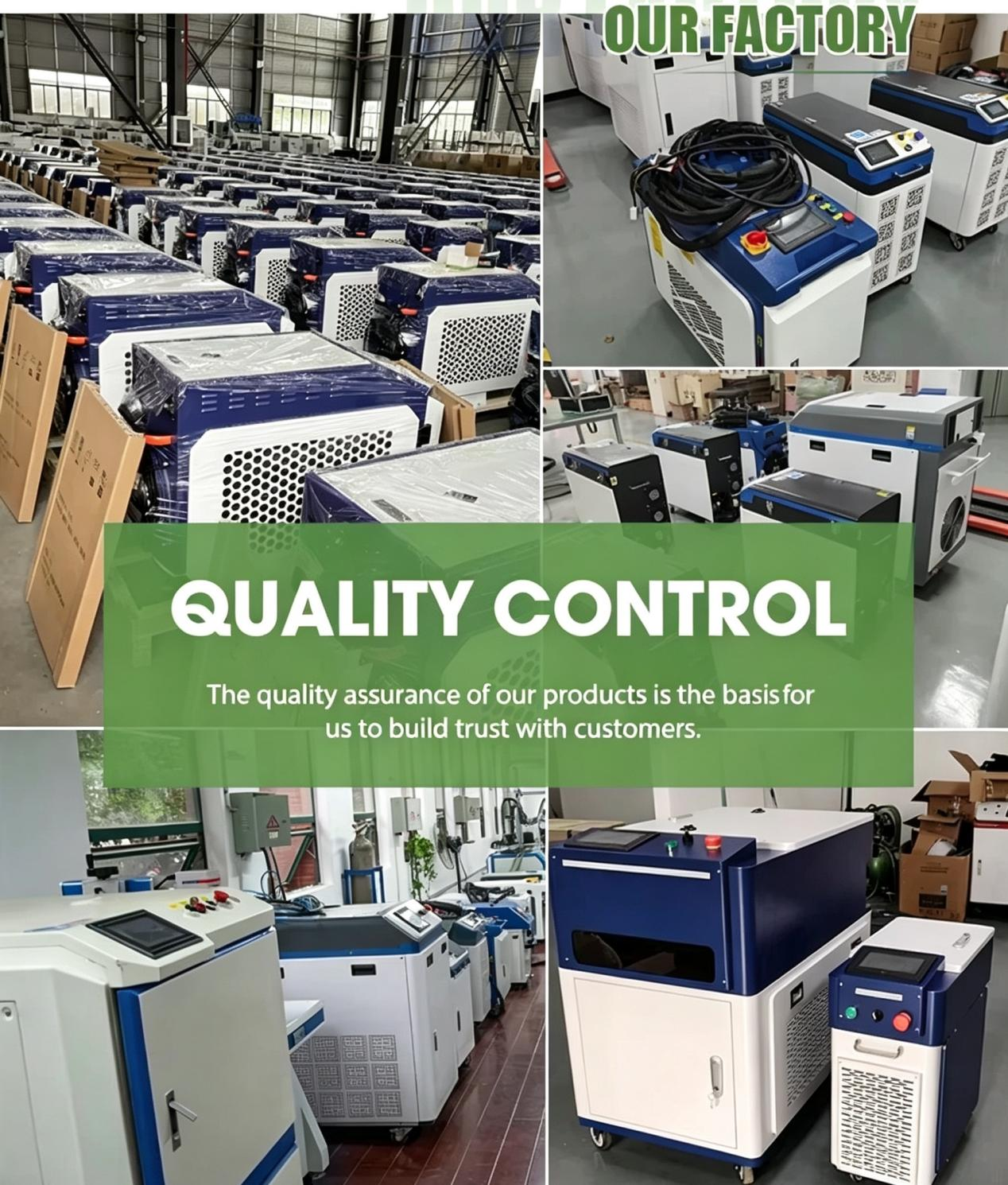

Our Laser Cleaning Machine Factory
